Pacific Electric Wire & Cable (Shenzhen) Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | PEWSC |
| Model Number : | PEW U3 |
| Certification : | UL |
| Price : | Copper Price plus Processing Fee plus Freight |
| Payment Terms : | T/T 100% Payment before Shipment |
| Supply Ability : | Delivery 10-15 Days after Next Order |
| Delivery Time : | 3-5 Work Days |

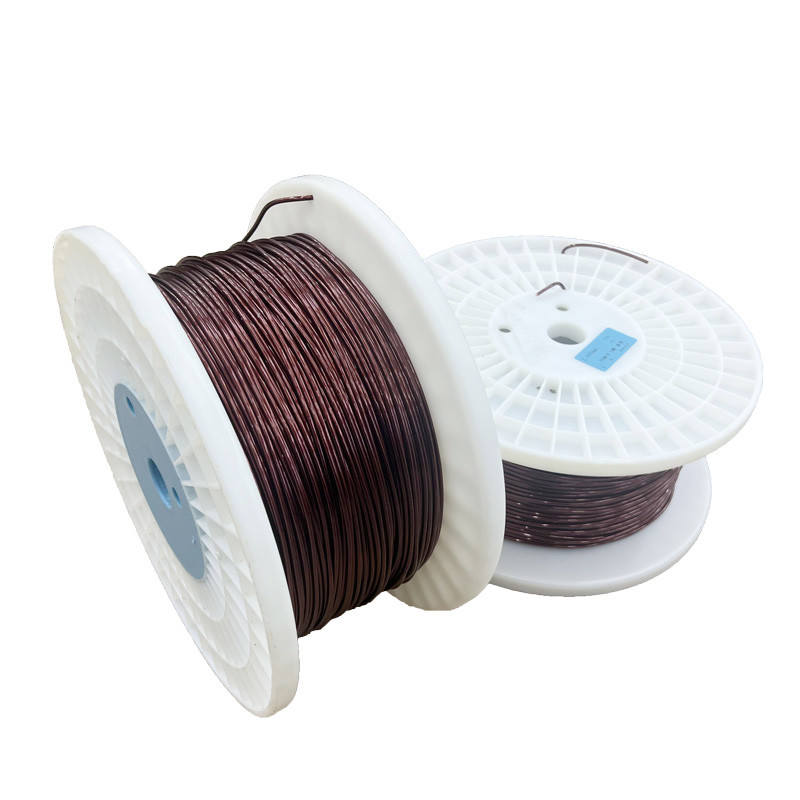

0.08mm-3.20mm polyester enamelled wire PEW U3 Non weldable 155 Thermal Class 155
U2 and U3 are double-layer and triple-layer windings respectively, which are more suitable for higher power and current applications and have better electromagnetic shielding performance.
1. Good basic performance.The insulation layer thickness of PEW is
generally 0.05-0.2mm, which can provide basic insulation
protection. It also has a certain degree of heat resistance and
mechanical strength.
Suitable for general industrial applications, PEW is mainly used in
motors, transformers and other general industrial electrical
equipment winding manufacturing, to meet the performance
requirements of ordinary working conditions.
2. Easy to process and manufacture: PEW's material and structure are relatively simple, which makes it easier to control the winding and molding process of motor windings. Overall, PEW is a basic type of enameled wire with moderate performance and low cost, which is widely used in the manufacture of industrial motors, transformers and other common electrical equipment. It meets the basic requirements of most common industrial applications. PEW is an economical and practical choice for applications that do not require special performance.
| JIS---3種 | ||||||||||||||
| Unit﹕mm | ||||||||||||||
| Diameter of Conduct | Conductor Control Benchmarks | OD Control Benchmarks | Specification Boundaries | Conductor Resistance 20℃ (Ω/KM) | Insulation breakdownvoltage (v) | Min Elongation (%) | Max. Springiness (°) | Resistance to abrasion | ||||||
| Lower Limit | Upper Limit | Lower Limit | Median | Upper Limit | Min. Increase in Diameter | Max. Finished overall Diameter | JIS | AWG | Average | Minimum | ||||
| 0.04±0.002 | 0.039 | 0.041 | 0.045 | 0.047 | 0.050 | 0.004 | 0.052 | 15670 | 100 | 7 | 11 | -- | -- | -- |
| 0.05±0.003 | 0.049 | 0.051 | 0.057 | 0.060 | 0.062 | 0.006 | 0.064 | 10240 | 700 | 10 | 14 | -- | -- | -- |
| 0.06±0.003 | 0.059 | 0.061 | 0.067 | 0.070 | 0.072 | 0.006 | 0.075 | 6966 | 700 | 10 | 15 | -- | -- | -- |
| 0.07±0.003 | 0.069 | 0.071 | 0.077 | 0.080 | 0.082 | 0.006 | 0.085 | 4990 | 700 | 10 | 17 | -- | -- | -- |
| 0.08±0.003 | 0.079 | 0.081 | 0.087 | 0.091 | 0.094 | 0.006 | 0.097 | 3778 | 700 | 10 | 17 | -- | -- | -- |
| 0.09±0.003 | 0.089 | 0.091 | 0.097 | 0.101 | 0.104 | 0.006 | 0.107 | 2959 | 700 | 10 | 18 | -- | -- | -- |
| 0.10±0.003 | 0.099 | 0.101 | 0.107 | 0.110 | 0.114 | 0.006 | 0.118 | 2381 | 700 | 15 | 19 | -- | -- | -- |
| 0.11±0.003 | 0.109 | 0.111 | 0.117 | 0.121 | 0.124 | 0.006 | 0.128 | 1957 | 700 | 15 | 19 | -- | -- | -- |
| 0.12±0.003 | 0.119 | 0.121 | 0.129 | 0.132 | 0.135 | 0.008 | 0.139 | 1636 | 850 | 15 | 20 | -- | -- | -- |
| 0.13±0.003 | 0.129 | 0.131 | 0.137 | 0.142 | 0.145 | 0.008 | 0.149 | 1389 | 850 | 15 | 20 | -- | -- | -- |
| 0.14±0.003 | 0.139 | 0.141 | 0.149 | 0.152 | 0.155 | 0.008 | 0.159 | 1193 | 850 | 15 | 21 | -- | -- | -- |
| 0.15±0.003 | 0.149 | 0.151 | 0.159 | 0.162 | 0.165 | 0.008 | 0.169 | 1037 | 850 | 15 | 21 | -- | -- | -- |
| 0.16±0.003 | 0.159 | 0.161 | 0.171 | 0.174 | 0.177 | 0.010 | 0.181 | 908.8 | 850 | 15 | 22 | -- | -- | -- |
| 0.17±0.003 | 0.169 | 0.171 | 0.181 | 0.184 | 0.187 | 0.010 | 0.191 | 803.2 | 850 | 15 | 23 | -- | -- | -- |
| 0.18±0.003 | 0.179 | 0.181 | 0.191 | 0.194 | 0.197 | 0.010 | 0.202 | 715.0 | 1000 | 15 | 23 | -- | -- | -- |
| 0.19±0.003 | 0.189 | 0.191 | 0.201 | 0.204 | 0.208 | 0.010 | 0.212 | 640.6 | 1000 | 15 | 23 | -- | -- | -- |
| 0.20±0.003 | 0.198 | 0.201 | 0.211 | 0.214 | 0.218 | 0.010 | 0.222 | 577.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.21±0.003 | 0.208 | 0.212 | 0.221 | 0.224 | 0.228 | 0.010 | 0.232 | 522.8 | 1000 | 15 | 24 | -- | -- | -- |
| 0.22±0.004 | 0.218 | 0.222 | 0.231 | 0.235 | 0.239 | 0.010 | 0.243 | 480.1 | 1000 | 15 | 24 | -- | -- | -- |
| 0.23±0.004 | 0.228 | 0.232 | 0.243 | 0.246 | 0.249 | 0.012 | 0.255 | 438.6 | 1000 | 15 | 24 | -- | -- | -- |
| 0.24±0.004 | 0.238 | 0.242 | 0.253 | 0.256 | 0.259 | 0.012 | 0.265 | 402.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.25±0.004 | 0.248 | 0.252 | 0.263 | 0.266 | 0.269 | 0.012 | 0.275 | 370.2 | 1000 | 15 | 25 | 66 | -- | -- |
| 0.26±0.004 | 0.258 | 0.262 | 0.273 | 0.276 | 0.279 | 0.012 | 0.285 | 341.8 | 1000 | 15 | 25 | 66 | 163 | 133 |
| 0.27±0.004 | 0.268 | 0.272 | 0.283 | 0.286 | 0.289 | 0.012 | 0.295 | 316.6 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.28±0.004 | 0.278 | 0.282 | 0.293 | 0.296 | 0.299 | 0.012 | 0.305 | 294.4 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.29±0.004 | 0.288 | 0.292 | 0.303 | 0.306 | 0.309 | 0.012 | 0.315 | 273.9 | 1000 | 20 | 26 | 61 | 163 | 133 |
| 0.30±0.005 | 0.298 | 0.302 | 0.315 | 0.319 | 0.323 | 0.014 | 0.327 | 254.0 | 1400 | 20 | 26 | 61 | 194 | 163 |
| 0.32±0.005 | 0.317 | 0.322 | 0.335 | 0.339 | 0.343 | 0.014 | 0.347 | 222.8 | 1400 | 20 | 26 | 55 | 194 | 163 |
| 0.35±0.005 | 0.347 | 0.352 | 0.365 | 0.369 | 0.373 | 0.014 | 0.377 | 185.7 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.37±0.005 | 0.367 | 0.372 | 0.385 | 0.389 | 0.393 | 0.014 | 0.397 | 165.9 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.40±0.005 | 0.397 | 0.402 | 0.415 | 0.419 | 0.425 | 0.014 | 0.429 | 141.7 | 1400 | 20 | 27 | 76 | 204 | 163 |
| 0.45±0.006 | 0.446 | 0.452 | 0.465 | 0.469 | 0.475 | 0.014 | 0.479 | 112.1 | 1400 | 20 | 28 | 72 | 204 | 173 |
| 0.50±0.006 | 0.496 | 0.502 | 0.517 | 0.522 | 0.527 | 0.016 | 0.531 | 89.95 | 1450 | 20 | 28 | 67 | 235 | 204 |
| 0.55±0.006 | 0.546 | 0.552 | 0.567 | 0.572 | 0.577 | 0.016 | 0.581 | 74.18 | 1450 | 20 | 29 | 62 | 245 | 204 |
| 0.60±0.008 | 0.596 | 0.602 | 0.617 | 0.623 | 0.628 | 0.016 | 0.632 | 62.64 | 1450 | 20 | 29 | 62 | 245 | 204 |
|
|
