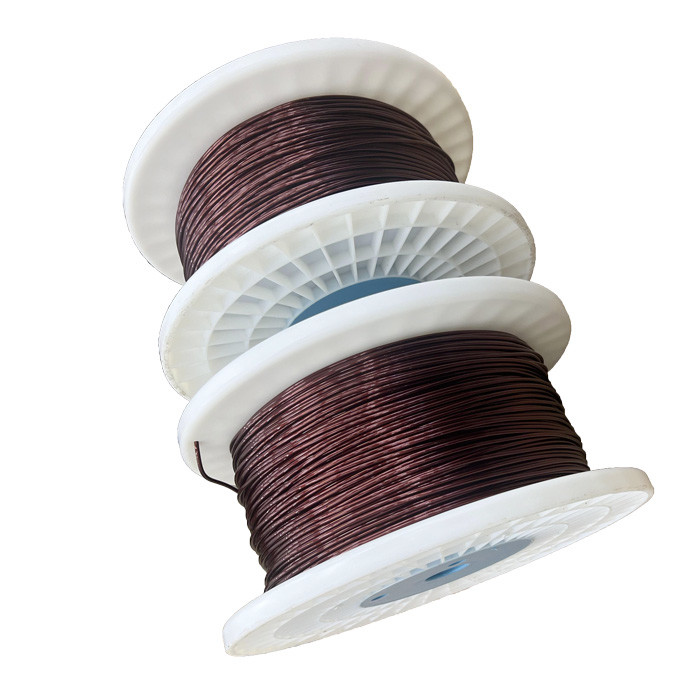

Polyester Enamel Covered Wire AWG 40-8 Non Weldable Thermal Class 155 PEW for Electromagnetic

Ask Lasest Price
Brand Name :	PEWSC
Model Number :	PEW AWG 40-8
Certification :	UL,ROHS
Price :	Copper price plus processing fee plus freight
Payment Terms :	T/T 100% Payment before Shipment
Supply Ability :	Delivery 10-15 Days after Next Order
Delivery Time :	3-5 Work Days

Add to Cart

Product Details
Company Profile

Polyester Enamel Covered Wire AWG 40-8 Non Weldable Thermal Class 155 PEW for Electromagnetic

0.08mm-3.20mm polyester enamelled wire PEW Grade three Non weldable 155 Thermal Class 155

PEW Grade three is a high quality enameled wire designed for industrial and professional applications. This product utilizes a three-layer coating technology that provides excellent insulation and heat resistance, making it ideal for use in a variety of harsh environments.

PEW Grade three has a uniform, smooth coating that prevents current leakage and electromagnetic interference. At the same time, its high strength and flexibility enable it to withstand large current loads and mechanical stresses, ensuring stable equipment operation.

In addition, PEW Grade three meets the requirements of environmental protection and is manufactured with non-toxic and harmless materials, which is non-polluting to the environment. The product has a long service life, which can reduce the maintenance cost and update frequency of the equipment, saving a lot of money and time for users.

All in all, PEW Grade three is a superior performance and reliable quality solenoid material that is ideal for industrial and professional applications.

Polyester Enamel Covered Wire AWG 40-8 Non Weldable Thermal Class 155 PEW for Electromagnetic

GB ---Grade3 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.071	±0.003	0.070	0.072	0.09	0.095	0.018	0.097	4747	13	--	1100
0.080	±0.003	0.079	0.081	0.101	0.107	0.020	0.108	3703	14	100	1200
0.090	±0.003	0.089	0.091	0.113	0.119	0.022	0.120	2900	15	94	1300
0.100	±0.003	0.099	0.101	0.124	0.131	0.023	0.132	2333	16	90	1400
0.112	±0.003	0.111	0.114	0.139	0.146	0.026	0.147	1848	17	88	3900
0.125	±0.003	0.124	0.127	0.154	0.161	0.028	0.163	1475	17	84	4100
0.140	±0.003	0.139	0.142	0.171	0.178	0.030	0.181	1170	18	79	4200
0.160	±0.003	0.159	0.162	0.194	0.201	0.033	0.205	890.6	19	78	4400
0.180	±0.003	0.179	0.182	0.218	0.225	0.036	0.229	700.7	20	75	4700
0.200	±0.003	0.199	0.202	0.241	0.249	0.039	0.252	565.7	21	72	5100
0.224	±0.003	0.223	0.226	0.269	0.277	0.043	0.280	449.5	21	68	5200
0.250	±0.004	0.249	0.253	0.301	0.309	0.048	0.312	362.8	22	65	5500
0.280	±0.004	0.279	0.283	0.333	0.341	0.050	0.345	288.2	22	61	5800
0.315	±0.004	0.314	0.317	0.371	0.38	0.053	0.384	227.0	23	62	6100
0.355	±0.004	0.354	0.357	0.415	0.423	0.057	0.428	178.2	23	59	6400
0.400	±0.005	0.398	0.403	0.464	0.474	0.060	0.478	140.7	24	55	6600
0.450	±0.005	0.448	0.453	0.518	0.528	0.064	0.533	110.9	25	53	6800
0.500	±0.005	0.498	0.503	0.571	0.581	0.067	0.587	89.59	25	51	7000
0.560	±0.006	0.557	0.563	0.635	0.645	0.071	0.653	71.53	26	48	7100
0.630	±0.006	0.627	0.633	0.709	0.721	0.075	0.728	56.38	27	53	7100
0.710	±0.007	0.707	0.714	0.795	0.807	0.080	0.814	44.42	28	50	7200
0.800	±0.008	0.797	0.804	0.89	0.902	0.085	0.911	35.00	28	46	7400
0.900	±0.009	0.897	0.904	0.995	1.007	0.090	1.018	27.65	29	51	7600
1.000	±0.010	0.997	1.004	1.1	1.114	0.095	1.124	22.40	30	47	7600
1.120	±0.011	1.116	1.124	1.223	1.237	0.098	1.248	17.85	30	34	7600
1.250	±0.013	1.246	1.254	1.355	1.369	0.100	1.381	14.35	31	39	7600
1.400	±0.014	1.396	1.406	1.509	1.523	0.103	1.535	11.43	32	36	7600
1.600	±0.016	1.596	1.606	1.714	1.73	0.107	1.740	8.75	32	32	7600
1.800	±0.018	1.796	1.806	1.917	1.933	0.110	1.944	6.91	32		7600
2.000	±0.020	1.994	2.006	2.12	2.136	0.113	2.148	5.60	33		7600
2.240	±0.022	2.234	2.246	2.363	2.381	0.116	2.392	4.46	33		7600
2.500	±0.025	2.494	2.506	2.626	2.644	0.119	2.656	3.58	33		7600
2.800	±0.028	2.794	2.808	2.932	2.95	0.123	2.961	2.86	34		3800
3.150	±0.032	3.144	3.158	3.286	3.306	0.127	3.316	2.26	34		3800
