Pacific Electric Wire & Cable (Shenzhen) Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | PEWSC |
| Model Number : | UEWF |
| Certification : | UL |
| Delivery Time : | 3-5 Work Days |
| Payment Terms : | T/T 100% Payment before Shipment |
| Price : | Copper Price plus Processing Fee plus Freight |
| Supply Ability : | Delivery 10-15 Days after Next Order |

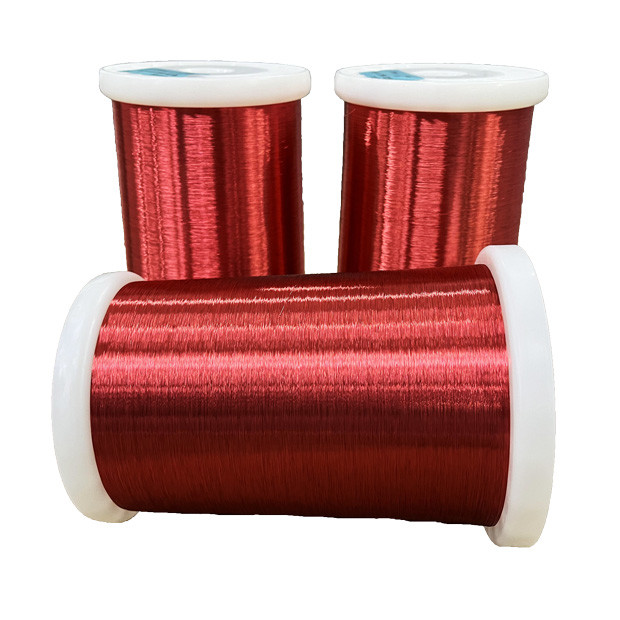

The Enamel Insulated Copper Wire is coated with a layer of polyester enamel that provides excellent insulation and protection against wear and tear. This coating also prevents the wire from short-circuiting and ensures its longevity. This type of wire is also commonly known as Enameled Magnet Wire or Polyester Enamelled Copper Wire.
Available in natural, red, and green colors, this wire can be easily identified and differentiated for various applications. Whether you're using it for home appliances or industrial machinery, this wire is designed to withstand high temperatures and harsh environments, making it a reliable and durable option for your needs.
With its superior conductivity and insulation properties, the Enamel Insulated Copper Wire is a must-have for any electrical project. Choose from our range of sizes to find the perfect fit for your specific requirements. Trust in our product to deliver consistent and efficient performance every time.
Enamel-coated Insulated Copper Wire, Copper Enameled Coated Conductor, Enameled Magnet Wire
| Product Name | Enamel-coated Insulated Copper Wire |
| Color Option | Natural,Red,Green |
| Material | Copper |
| Conductor Material | Copper Enameled Coated Conductor |
| Diameter | 0.04mm-1.00mm |
| Conductor Type | Type 2 |
| Shape | Round |
| Hierarchy Thickness | Single |
| Temperature Grade | 155℃ |
| Standard | JIS |
| Certifications | CE, RoHS, UL |
The UEWF model number is a round-shaped copper magnet wire with enamel insulation. It is available in diameters ranging from 0.04mm to 1.00mm. This product has CE, RoHS, and UL certifications, making it a reliable and safe option for a variety of applications.
The Enamel Insulated Copper Wire is commonly used in the electrical and electronics industries. It is used in transformers, motors, generators, and other electrical equipment. The enamel insulation provides excellent protection against moisture, heat, and chemicals, making it a reliable choice for harsh environments.
Another application of this product is in the production of coils and solenoids. The enamel insulation ensures that the wire is protected from mechanical stresses and abrasions, making it a durable and long-lasting option.
The Enamel Insulated Copper Wire is also used in the construction industry. It is used in the wiring of buildings and other structures. Its excellent electrical conductivity and high-temperature grade of 155℃ make it a reliable and safe option for use in high-temperature environments.
In conclusion, the PEWSC UEWF Enamel Insulated Copper Wire is a high-quality product that has a wide range of applications and scenarios. Its copper enameled coated conductor, insulated copper magnet wire, and magnetic wire with enamel insulation make it a reliable and safe option for use in a variety of industries. Its certifications and high-temperature grade ensure that it meets the highest standards of quality and safety.
Our Enamel Insulated Copper Wire product comes with comprehensive technical support and services to ensure that our customers get the most out of their purchase. Our team of experts is available to answer any questions related to the product's specifications, applications, and performance. We offer customized solutions to our clients' unique requirements, including wire customization, testing, and certification.
We also provide after-sales support, including maintenance and repair services, to ensure long-lasting performance and reliability of our products. Our technical support and services are designed to assist our customers in every step of the process, from choosing the right product to installation and operation.
Our commitment to quality and customer satisfaction is reflected in our technical support and services, which are available 24/7 through various channels, including phone, email, and online chat. We strive to provide prompt and efficient service to our customers, ensuring a seamless experience throughout their purchase journey.
| JIS---3種 | ||||||||||||||
| Unit﹕mm | ||||||||||||||
| Diameter of Conduct | Conductor Control Benchmarks | OD Control Benchmarks | Specification Boundaries | Conductor Resistance 20℃ (Ω/KM) | Insulation breakdownvoltage (v) | Min Elongation (%) | Max. Springiness (°) | Resistance to abrasion | ||||||
| Lower Limit | Upper Limit | Lower Limit | Median | Upper Limit | Min. Increase in Diameter | Max. Finished overall Diameter | JIS | AWG | Average | Minimum | ||||
| 0.04±0.002 | 0.039 | 0.041 | 0.045 | 0.047 | 0.050 | 0.004 | 0.052 | 15670 | 100 | 7 | 11 | -- | -- | -- |
| 0.05±0.003 | 0.049 | 0.051 | 0.057 | 0.060 | 0.062 | 0.006 | 0.064 | 10240 | 700 | 10 | 14 | -- | -- | -- |
| 0.06±0.003 | 0.059 | 0.061 | 0.067 | 0.070 | 0.072 | 0.006 | 0.075 | 6966 | 700 | 10 | 15 | -- | -- | -- |
| 0.07±0.003 | 0.069 | 0.071 | 0.077 | 0.080 | 0.082 | 0.006 | 0.085 | 4990 | 700 | 10 | 17 | -- | -- | -- |
| 0.08±0.003 | 0.079 | 0.081 | 0.087 | 0.091 | 0.094 | 0.006 | 0.097 | 3778 | 700 | 10 | 17 | -- | -- | -- |
| 0.09±0.003 | 0.089 | 0.091 | 0.097 | 0.101 | 0.104 | 0.006 | 0.107 | 2959 | 700 | 10 | 18 | -- | -- | -- |
| 0.10±0.003 | 0.099 | 0.101 | 0.107 | 0.110 | 0.114 | 0.006 | 0.118 | 2381 | 700 | 15 | 19 | -- | -- | -- |
| 0.11±0.003 | 0.109 | 0.111 | 0.117 | 0.121 | 0.124 | 0.006 | 0.128 | 1957 | 700 | 15 | 19 | -- | -- | -- |
| 0.12±0.003 | 0.119 | 0.121 | 0.129 | 0.132 | 0.135 | 0.008 | 0.139 | 1636 | 850 | 15 | 20 | -- | -- | -- |
| 0.13±0.003 | 0.129 | 0.131 | 0.137 | 0.142 | 0.145 | 0.008 | 0.149 | 1389 | 850 | 15 | 20 | -- | -- | -- |
| 0.14±0.003 | 0.139 | 0.141 | 0.149 | 0.152 | 0.155 | 0.008 | 0.159 | 1193 | 850 | 15 | 21 | -- | -- | -- |
| 0.15±0.003 | 0.149 | 0.151 | 0.159 | 0.162 | 0.165 | 0.008 | 0.169 | 1037 | 850 | 15 | 21 | -- | -- | -- |
| 0.16±0.003 | 0.159 | 0.161 | 0.171 | 0.174 | 0.177 | 0.010 | 0.181 | 908.8 | 850 | 15 | 22 | -- | -- | -- |
| 0.17±0.003 | 0.169 | 0.171 | 0.181 | 0.184 | 0.187 | 0.010 | 0.191 | 803.2 | 850 | 15 | 23 | -- | -- | -- |
| 0.18±0.003 | 0.179 | 0.181 | 0.191 | 0.194 | 0.197 | 0.010 | 0.202 | 715.0 | 1000 | 15 | 23 | -- | -- | -- |
| 0.19±0.003 | 0.189 | 0.191 | 0.201 | 0.204 | 0.208 | 0.010 | 0.212 | 640.6 | 1000 | 15 | 23 | -- | -- | -- |
| 0.20±0.003 | 0.198 | 0.201 | 0.211 | 0.214 | 0.218 | 0.010 | 0.222 | 577.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.21±0.003 | 0.208 | 0.212 | 0.221 | 0.224 | 0.228 | 0.010 | 0.232 | 522.8 | 1000 | 15 | 24 | -- | -- | -- |
| 0.22±0.004 | 0.218 | 0.222 | 0.231 | 0.235 | 0.239 | 0.010 | 0.243 | 480.1 | 1000 | 15 | 24 | -- | -- | -- |
| 0.23±0.004 | 0.228 | 0.232 | 0.243 | 0.246 | 0.249 | 0.012 | 0.255 | 438.6 | 1000 | 15 | 24 | -- | -- | -- |
| 0.24±0.004 | 0.238 | 0.242 | 0.253 | 0.256 | 0.259 | 0.012 | 0.265 | 402.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.25±0.004 | 0.248 | 0.252 | 0.263 | 0.266 | 0.269 | 0.012 | 0.275 | 370.2 | 1000 | 15 | 25 | 66 | -- | -- |
| 0.26±0.004 | 0.258 | 0.262 | 0.273 | 0.276 | 0.279 | 0.012 | 0.285 | 341.8 | 1000 | 15 | 25 | 66 | 163 | 133 |
| 0.27±0.004 | 0.268 | 0.272 | 0.283 | 0.286 | 0.289 | 0.012 | 0.295 | 316.6 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.28±0.004 | 0.278 | 0.282 | 0.293 | 0.296 | 0.299 | 0.012 | 0.305 | 294.4 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.29±0.004 | 0.288 | 0.292 | 0.303 | 0.306 | 0.309 | 0.012 | 0.315 | 273.9 | 1000 | 20 | 26 | 61 | 163 | 133 |
| 0.30±0.005 | 0.298 | 0.302 | 0.315 | 0.319 | 0.323 | 0.014 | 0.327 | 254.0 | 1400 | 20 | 26 | 61 | 194 | 163 |
| 0.32±0.005 | 0.317 | 0.322 | 0.335 | 0.339 | 0.343 | 0.014 | 0.347 | 222.8 | 1400 | 20 | 26 | 55 | 194 | 163 |
| 0.35±0.005 | 0.347 | 0.352 | 0.365 | 0.369 | 0.373 | 0.014 | 0.377 | 185.7 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.37±0.005 | 0.367 | 0.372 | 0.385 | 0.389 | 0.393 | 0.014 | 0.397 | 165.9 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.40±0.005 | 0.397 | 0.402 | 0.415 | 0.419 | 0.425 | 0.014 | 0.429 | 141.7 | 1400 | 20 | 27 | 76 | 204 | 163 |
| 0.45±0.006 | 0.446 | 0.452 | 0.465 | 0.469 | 0.475 | 0.014 | 0.479 | 112.1 | 1400 | 20 | 28 | 72 | 204 | 173 |
| 0.50±0.006 | 0.496 | 0.502 | 0.517 | 0.522 | 0.527 | 0.016 | 0.531 | 89.95 | 1450 | 20 | 28 | 67 | 235 | 204 |
| 0.55±0.006 | 0.546 | 0.552 | 0.567 | 0.572 | 0.577 | 0.016 | 0.581 | 74.18 | 1450 | 20 | 29 | 62 | 245 | 204 |
| 0.60±0.008 | 0.596 | 0.602 | 0.617 | 0.623 | 0.628 | 0.016 | 0.632 | 62.64 | 1450 | 20 | 29 | 62 | 245 | 204 |
|
|
