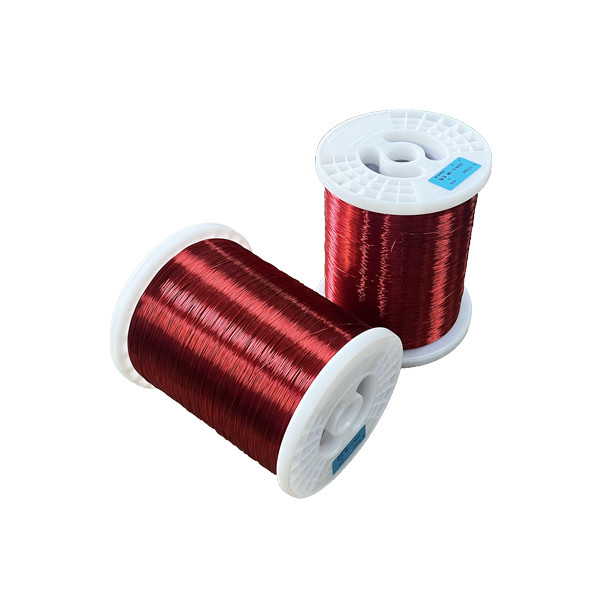

UEFN Enamelled Round Copper Wire with Special Conductive Filler for Motors

Ask Lasest Price
Brand Name :	PEWSC
Model Number :	UEFN U3
Certification :	UL
Price :	Copper price plus processing fee plus freight
Payment Terms :	T/T 100% payment before shipment
Supply Ability :	Delivery 10-15 days after next order
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

UEFN Enamelled Round Copper Wire with Special Conductive Filler for Motors

U2 and U3 are double-layer and triple-layer windings respectively, which are more suitable for higher power and current applications and have better electromagnetic shielding performance.

Good electromagnetic shielding properties.
The insulating layer of UEFN contains special conductive filler, which can effectively block the interference of external electromagnetic fields.

It is widely used or high speed coiling processing,general motor

JIS---3種
									Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.04±0.002	0.039	0.041	0.045	0.047	0.050	0.004	0.052	15670	100	7	11	--	--	--
0.05±0.003	0.049	0.051	0.057	0.060	0.062	0.006	0.064	10240	700	10	14	--	--	--
0.06±0.003	0.059	0.061	0.067	0.070	0.072	0.006	0.075	6966	700	10	15	--	--	--
0.07±0.003	0.069	0.071	0.077	0.080	0.082	0.006	0.085	4990	700	10	17	--	--	--
0.08±0.003	0.079	0.081	0.087	0.091	0.094	0.006	0.097	3778	700	10	17	--	--	--
0.09±0.003	0.089	0.091	0.097	0.101	0.104	0.006	0.107	2959	700	10	18	--	--	--
0.10±0.003	0.099	0.101	0.107	0.110	0.114	0.006	0.118	2381	700	15	19	--	--	--
0.11±0.003	0.109	0.111	0.117	0.121	0.124	0.006	0.128	1957	700	15	19	--	--	--
0.12±0.003	0.119	0.121	0.129	0.132	0.135	0.008	0.139	1636	850	15	20	--	--	--
0.13±0.003	0.129	0.131	0.137	0.142	0.145	0.008	0.149	1389	850	15	20	--	--	--
0.14±0.003	0.139	0.141	0.149	0.152	0.155	0.008	0.159	1193	850	15	21	--	--	--
0.15±0.003	0.149	0.151	0.159	0.162	0.165	0.008	0.169	1037	850	15	21	--	--	--
0.16±0.003	0.159	0.161	0.171	0.174	0.177	0.010	0.181	908.8	850	15	22	--	--	--
0.17±0.003	0.169	0.171	0.181	0.184	0.187	0.010	0.191	803.2	850	15	23	--	--	--
0.18±0.003	0.179	0.181	0.191	0.194	0.197	0.010	0.202	715.0	1000	15	23	--	--	--
0.19±0.003	0.189	0.191	0.201	0.204	0.208	0.010	0.212	640.6	1000	15	23	--	--	--
0.20±0.003	0.198	0.201	0.211	0.214	0.218	0.010	0.222	577.2	1000	15	24	--	--	--
0.21±0.003	0.208	0.212	0.221	0.224	0.228	0.010	0.232	522.8	1000	15	24	--	--	--
0.22±0.004	0.218	0.222	0.231	0.235	0.239	0.010	0.243	480.1	1000	15	24	--	--	--
0.23±0.004	0.228	0.232	0.243	0.246	0.249	0.012	0.255	438.6	1000	15	24	--	--	--
0.24±0.004	0.238	0.242	0.253	0.256	0.259	0.012	0.265	402.2	1000	15	24	--	--	--
0.25±0.004	0.248	0.252	0.263	0.266	0.269	0.012	0.275	370.2	1000	15	25	66	--	--
0.26±0.004	0.258	0.262	0.273	0.276	0.279	0.012	0.285	341.8	1000	15	25	66	163	133
0.27±0.004	0.268	0.272	0.283	0.286	0.289	0.012	0.295	316.6	1000	15	26	61	163	133
0.28±0.004	0.278	0.282	0.293	0.296	0.299	0.012	0.305	294.4	1000	15	26	61	163	133
0.29±0.004	0.288	0.292	0.303	0.306	0.309	0.012	0.315	273.9	1000	20	26	61	163	133
0.30±0.005	0.298	0.302	0.315	0.319	0.323	0.014	0.327	254.0	1400	20	26	61	194	163
0.32±0.005	0.317	0.322	0.335	0.339	0.343	0.014	0.347	222.8	1400	20	26	55	194	163
0.35±0.005	0.347	0.352	0.365	0.369	0.373	0.014	0.377	185.7	1400	20	27	50	194	163
0.37±0.005	0.367	0.372	0.385	0.389	0.393	0.014	0.397	165.9	1400	20	27	50	194	163
0.40±0.005	0.397	0.402	0.415	0.419	0.425	0.014	0.429	141.7	1400	20	27	76	204	163
0.45±0.006	0.446	0.452	0.465	0.469	0.475	0.014	0.479	112.1	1400	20	28	72	204	173
0.50±0.006	0.496	0.502	0.517	0.522	0.527	0.016	0.531	89.95	1450	20	28	67	235	204
0.55±0.006	0.546	0.552	0.567	0.572	0.577	0.016	0.581	74.18	1450	20	29	62	245	204
0.60±0.008	0.596	0.602	0.617	0.623	0.628	0.016	0.632	62.64	1450	20	29	62	245	204
