| Brand Name : | PEWSC |
| Model Number : | PEWH Heavy |
| Certification : | UL,ROHS |
| Price : | Copper price plus processing fee plus freight |
| Payment Terms : | T/T 100% payment before shipment |
| Supply Ability : | Delivery 10-15 days after next order |
| Delivery Time : | 3-5 work days |
Heavy refers to a thicker wire diameter that can withstand higher currents and is used in applications such as high power motors or transformers.
The choice of wire diameter needs to be weighed against the specific electrical performance requirements.

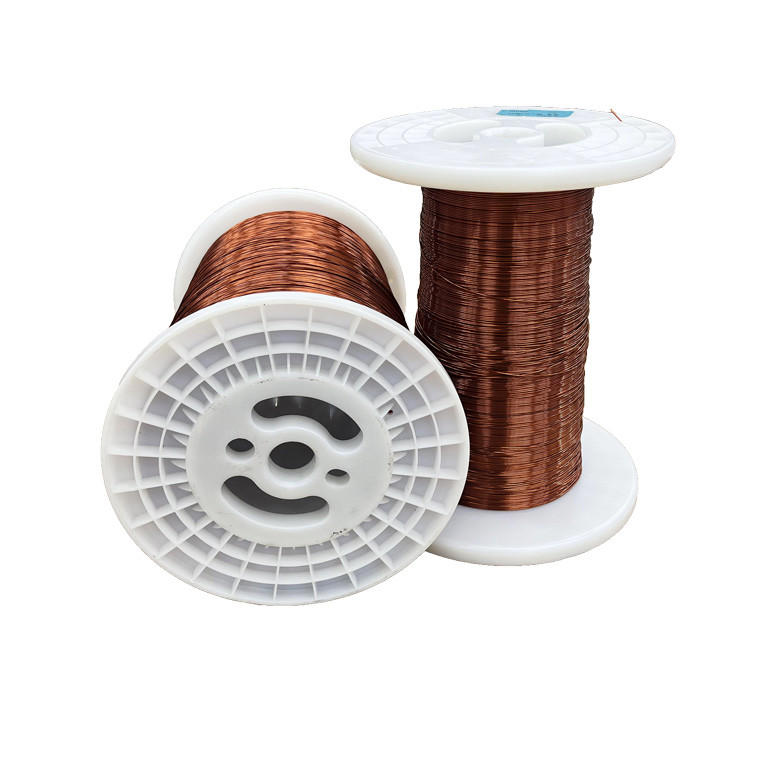

PEWH enameled wire is a premium electromagnetic wire material designed for high performance and durability in a variety of harsh environments for motor and transformer applications. This enameled wire utilizes specially modified insulating coatings and advanced manufacturing processes to ensure excellent insulating properties and resistance to heat, cold and chemicals.
Good chemical resistance PEWH polyimide outer layers are highly resistant to a wide range of chemicals and solvents, making them suitable for industrial applications in harsh environments.
Customization: A full range of customization services are available, including different diameters, lengths and insulation thickness options to meet the needs of specific industries and applications.
Overall, PEWH is a high-end enameled wire product with excellent performance in terms of high temperature resistance, mechanical strength, insulation and chemical resistance. It is widely used in the manufacture of key components for high power motors, large transformers and other industrial applications.
| NEMA---Heavy | Unit﹕mm | ||||||||||||||||||||
| AWG | Diameter of Conduct | Conductor Control Benchmarks | OD Control Benchmarks | Specification Boundaries | Conductor Resistance 20℃ (Ω/KM) | Insulation breakdownvoltage (v) | Min Elongation (%) | Max. Springiness (°) | Resistance to abrasion | ||||||||||||
| Lower Limit | Upper Limit | Lower Limit | Median | Upper Limit | Min. Increase in Diameter | Max. Finished overall Diameter | Average | Minimum | |||||||||||||
| 44 | 0.051 | +0.002 | 0.050 | 0.052 | 0.062 | 0.064 | 0.066 | 0.010 | 0.066 | 9527.95 | 1300 | 14 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 43 | 0.056 | +0.002 | 0.055 | 0.057 | 0.068 | 0.070 | 0.072 | 0.010 | 0.074 | 7815.03 | 1400 | 15 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 42 | 0.064 | +0.002 | 0.063 | 0.065 | 0.079 | 0.081 | 0.083 | 0.013 | 0.084 | 5899.6 | 1675 | 16 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 41 | 0.071 | +0.003 | 0.070 | 0.072 | 0.086 | 0.088 | 0.090 | 0.013 | 0.094 | 4610.88 | 1675 | 17 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 40 | 0.079 | +0.002 | 0.078 | 0.080 | 0.094 | 0.096 | 0.098 | 0.013 | 0.104 | 3800.62 | 1800 | 17 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 39 | 0.089 | +0.002 | 0.088 | 0.090 | 0.106 | 0.109 | 0.112 | 0.015 | 0.114 | 2968.15 | 1975 | 18 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 38 | 0.102 | +0.002 | 0.101 | 0.103 | 0.122 | 0.125 | 0.128 | 0.018 | 0.130 | 2239.81 | 2150 | 19 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 37 | 0.114 | +0.003 | 0.113 | 0.115 | 0.134 | 0.137 | 0.140 | 0.018 | 0.145 | 1750.03 | 2325 | 20 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 36 | 0.127 | +0.003 | 0.126 | 0.128 | 0.149 | 0.152 | 0.155 | 0.020 | 0.160 | 1427.71 | 2525 | 20 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 35 | 0.142 | +0.003 | 0.141 | 0.143 | 0.167 | 0.170 | 0.173 | 0.023 | 0.178 | 1120.02 | 2750 | 21 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 34 | 0.16 | +0.003 | 0.159 | 0.161 | 0.185 | 0.188 | 0.191 | 0.023 | 0.198 | 890.6 | 2975 | 22 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 33 | 0.18 | +0.003 | 0.179 | 0.181 | 0.207 | 0.211 | 0.215 | 0.025 | 0.221 | 692.85 | 3250 | 23 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 32 | 0.203 | +0.003 | 0.202 | 0.205 | 0.233 | 0.237 | 0.241 | 0.028 | 0.246 | 543.36 | 3525 | 24 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 31 | 0.226 | +0.003 | 0.225 | 0.228 | 0.258 | 0.262 | 0.266 | 0.030 | 0.274 | 437.51 | 3825 | 24 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 30 | 0.254 | +0.002 | 0.252 | 0.256 | 0.289 | 0.293 | 0.297 | 0.033 | 0.307 | 348.45 | 4150 | 25 | 66 | 525 | 450 | ||||||
| -0.003 | |||||||||||||||||||||
| 29 | 0.287 | +0.003 | 0.285 | 0.289 | 0.328 | 0.332 | 0.336 | 0.038 | 0.338 | 272.17 | 4250 | 26 | 61 | 560 | 480 | ||||||
| -0.003 | |||||||||||||||||||||
| 28 | 0.32 | +0.003 | 0.318 | 0.322 | 0.364 | 0.368 | 0.372 | 0.041 | 0.373 | 217.08 | 4375 | 26 | 55 | 595 | 510 | ||||||
| -0.002 | |||||||||||||||||||||
| 27 | 0.361 | +0.002 | 0.358 | 0.363 | 0.404 | 0.409 | 0.414 | 0.041 | 0.419 | 171.28 | 4500 | 27 | 50 | 635 | 540 | ||||||
| -0.003 | |||||||||||||||||||||
| 26 | 0.404 | +0.002 | 0.401 | 0.406 | 0.449 | 0.454 | 0.459 | 0.043 | 0.462 | 137.89 | 4600 | 27 | 76 | 675 | 575 | ||||||
| -0.005 | |||||||||||||||||||||
| 25 | 0.455 | +0.002 | 0.452 | 0.457 | 0.503 | 0.508 | 0.513 | 0.046 | 0.516 | 108.41 | 4725 | 28 | 72 | 720 | 615 | ||||||
| -0.005 | |||||||||||||||||||||
| 24 | 0.511 | +0.002 | 0.507 | 0.513 | 0.561 | 0.566 | 0.571 | 0.048 | 0.577 | 86.08 | 4850 | 28 | 67 | 770 | 655 | ||||||
| -0.006 | |||||||||||||||||||||
| 23 | 0.574 | +0.003 | 0.570 | 0.576 | 0.627 | 0.632 | 0.637 | 0.051 | 0.643 | 67.80 | 5000 | 29 | 62 | 820 | 700 | ||||||
| -0.005 | |||||||||||||||||||||
| 22 | 0.643 | +0.002 | 0.639 | 0.645 | 0.698 | 0.703 | 0.708 | 0.053 | 0.714 | 54.44 | 5125 | 29 | 58 | 880 | 750 | ||||||
| -0.008 | |||||||||||||||||||||
| 21 | 0.724 | +0.002 | 0.720 | 0.726 | 0.782 | 0.788 | 0.794 | 0.056 | 0.800 | 42.82 | 5250 | 30 | 53 | 940 | 800 | ||||||
| -0.008 | |||||||||||||||||||||
| 20 | 0.813 | +0.005 | 0.808 | 0.816 | 0.877 | 0.883 | 0.889 | 0.061 | 0.892 | 33.88 | 5400 | 30 | 66 | 1000 | 850 | ||||||
| -0.008 | |||||||||||||||||||||
| 19 | 0.912 | +0.005 | 0.907 | 0.915 | 0.979 | 0.985 | 0.991 | 0.064 | 0.993 | 26.98 | 5550 | 31 | 62 | 1070 | 910 | ||||||
| -0.010 | |||||||||||||||||||||
| 18 | 1.024 | +0.005 | 1.019 | 1.027 | 1.093 | 1.099 | 1.105 | 0.066 | 1.110 | 21.39 | 5700 | 32 | 58 | 1150 | 980 | ||||||
| -0.011 | |||||||||||||||||||||
| 17 | 1.151 | +0.005 | 1.145 | 1.154 | 1.225 | 1.231 | 1.237 | 0.071 | 1.240 | 16.95 | 5850 | 32 | 54 | 1230 | 1045 | ||||||
| -0.013 | |||||||||||||||||||||
| 16 | 1.29 | +0.008 | 1.284 | 1.293 | 1.368 | 1.374 | 1.380 | 0.074 | 1.384 | 13.44 | 6000 | 33 | 50 | 1310 | 1115 | ||||||
| -0.012 | |||||||||||||||||||||
| 15 | 1.450 | +0.008 | 1.444 | 1.453 | 1.530 | 1.536 | 1.542 | 0.076 | 1.549 | 10.66 | 6175 | 33 | 46 | 1400 | 1190 | ||||||
| -0.015 | |||||||||||||||||||||
| 14 | 1.628 | +0.008 | 1.621 | 1.631 | 1.713 | 1.720 | 1.727 | 0.081 | 1.732 | 8.44 | 6325 | 33 | 42 | 1490 | 1270 | ||||||
| -0.015 | |||||||||||||||||||||
| 13 | 1.829 | +0.010 | 1.822 | 1.832 | 1.915 | 1.922 | 1.929 | 0.081 | 1.935 | 6.69 | 5600 | 34 | -- | 1490 | 1270 | ||||||
| -0.018 | |||||||||||||||||||||
| 12 | 2.052 | +0.010 | 2.044 | 2.056 | 2.138 | 2.146 | 2.154 | 0.081 | 2.162 | 5.32 | 5800 | 34 | -- | 1490 | 1270 | ||||||
| -0.02 | |||||||||||||||||||||
| 11 | 2.304 | +0.012 | 2.296 | 2.308 | 2.393 | 2.402 | 2.411 | 0.084 | 2.418 | 4.22 | 6000 | 35 | -- | 1490 | 1270 | ||||||
| -0.023 | |||||||||||||||||||||
| 10 | 2.588 | +0.013 | 2.580 | 2.592 | 2.682 | 2.690 | 2.698 | 0.086 | 2.703 | 3.34 | 6200 | 35 | -- | 1940 | 1270 | ||||||
| -0.025 | |||||||||||||||||||||
| 9 | 2.906 | +0.015 | 2.896 | 2.910 | 3.000 | 3.009 | 3.018 | 0.086 | 3.023 | 2.65 | 3200 | 36 | -- | -- | -- | ||||||
| -0.028 | |||||||||||||||||||||
| 8 | 3.264 | +0.018 | 3.254 | 3.268 | 3.361 | 3.370 | 3.378 | 0.089 | 3.383 | 2.1 | 3300 | 36 | -- | -- | -- | ||||||
| -0.033 | |||||||||||||||||||||
| The above single wear resistance values apply to MW-5C 35C 81C 30C 75C 79C 80C 76C 28C 24C. The voltage resistance applies to MW-5C 35C 81C 30C 75C 79C 26C 77C. | |||||||||||||||||||||
|
|
