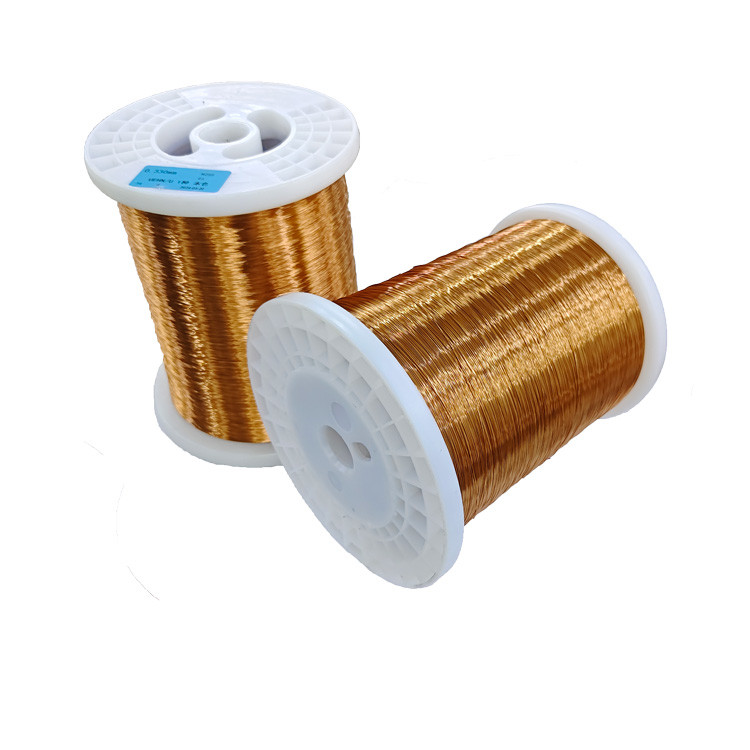

0.004mm - 1.00mm Overcoat Polyamide Enameled Wire UEHN Grade Two Thermal Class 180

Grade Two is the thinnest insulation grade for applications where space and weight are critical.

1. Excellent insulation strength: UEHN's polyimide insulation layer thickness can reach 0.1-0.5mm, which can provide very reliable insulation protection under high voltage. This is very advantageous for some special working conditions of electrical equipment.

2. Excellent mechanical properties: UEHN adopts a special polymer formulation and production process, which has very high tensile strength and wear resistance. UEHN can effectively resist various mechanical stresses during the manufacturing process of motor stator windings.
Good chemical resistance: UEHN's polyimide insulation has excellent corrosion resistance to most chemicals and solvents, allowing it to work stably for a long time in harsh environments.

In conclusion, UEHN is a high-end enameled wire with excellent performance in terms of high temperature resistance, high dielectric strength, mechanical strength and chemical resistance. It is widely used in aerospace, military equipment and industrial automation and other fields with extremely stringent material requirements.

0.004mm - 1.00mm Overcoat Polyamide Enameled Wire UEHN Grade Two Thermal Class 180

GB ---Grade2 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.040	±0.002	0.039	0.041	0.049	0.053	0.008	0.054	15202	9		475
0.045	±0.003	0.044	0.046	0.056	0.060	0.010	0.061	12445	9		550
0.050	±0.003	0.049	0.051	0.061	0.065	0.010	0.066	9938	10		600
0.056	±0.003	0.055	0.057	0.067	0.071	0.010	0.074	7815	10		650
0.063	±0.003	0.062	0.064	0.076	0.081	0.012	0.083	6098	12		700
0.071	±0.003	0.070	0.072	0.084	0.089	0.012	0.091	4747	13		700
0.080	±0.003	0.079	0.081	0.095	0.100	0.014	0.101	3703	14	80	850
0.090	±0.003	0.089	0.091	0.106	0.111	0.015	0.113	2900	15	77	900
0.100	±0.003	0.099	0.101	0.117	0.122	0.016	0.125	2333	16	73	950
0.112	±0.003	0.111	0.114	0.130	0.136	0.017	0.139	1848	17	73	2700
0.125	±0.003	0.124	0.127	0.145	0.151	0.019	0.154	1475	17	70	2800
0.140	±0.003	0.139	0.142	0.162	0.168	0.021	0.171	1170	18	67	3000
0.160	±0.003	0.159	0.162	0.184	0.190	0.023	0.194	890.6	19	67	3200
0.180	±0.003	0.179	0.182	0.207	0.213	0.025	0.217	700.7	20	65	3300
0.200	±0.003	0.199	0.202	0.229	0.235	0.027	0.239	565.7	21	62	3500
0.224	±0.003	0.223	0.226	0.255	0.262	0.029	0.266	449.5	21	59	3700
0.250	±0.004	0.249	0.253	0.285	0.292	0.032	0.297	362.8	22	56	3900
0.280	±0.004	0.279	0.283	0.316	0.323	0.033	0.329	288.2	22	53	4000
0.315	±0.004	0.314	0.317	0.353	0.361	0.035	0.367	227.0	23	55	4100
0.355	±0.004	0.354	0.357	0.396	0.404	0.038	0.411	178.2	23	53	4300
0.400	±0.005	0.398	0.403	0.444	0.454	0.040	0.459	140.7	24	50	4400
0.450	±0.005	0.448	0.453	0.496	0.506	0.042	0.513	110.9	25	48	4400
0.500	±0.005	0.498	0.503	0.549	0.559	0.045	0.566	89.59	25	47	4600
0.560	±0.006	0.557	0.563	0.611	0.621	0.047	0.630	71.53	26	44	4600
0.630	±0.006	0.627	0.633	0.684	0.696	0.050	0.704	56.38	27	50	4800
0.710	±0.007	0.707	0.714	0.768	0.780	0.053	0.789	44.42	28	47	4800
0.800	±0.008	0.797	0.804	0.861	0.873	0.056	0.884	35.00	28	43	4900
0.900	±0.009	0.897	0.904	0.965	0.977	0.060	0.989	27.65	29	48	5000
1.000	±0.010	0.997	1.004	1.068	1.082	0.063	1.094	22.40	30	45	5000
1.120	±0.011	1.116	1.124	1.190	1.204	0.065	1.217	17.85	30	41	5000
1.250	±0.013	1.246	1.254	1.322	1.336	0.067	1.349	14.35	31	37	5000
1.400	±0.014	1.396	1.406	1.476	1.490	0.069	1.502	11.43	32	34	5000
1.600	±0.016	1.596	1.606	1.678	1.694	0.071	1.706	8.75	32	30	5000
1.800	±0.018	1.796	1.806	1.880	1.896	0.073	1.909	6.91	32		5000
2.000	±0.020	1.994	2.006	2.082	2.098	0.075	2.112	5.60	33		5000
2.240	±0.022	2.234	2.246	2.324	2.342	0.077	2.355	4.46	33		5000
2.500	±0.025	2.494	2.506	2.586	2.604	0.079	2.618	3.58	33		5000
2.800	±0.028	2.794	2.808	2.890	2.908	0.081	2.922	2.86	34		2500
3.150	±0.032	3.144	3.158	3.243	3.263	0.084	3.276	2.26	34		2500
