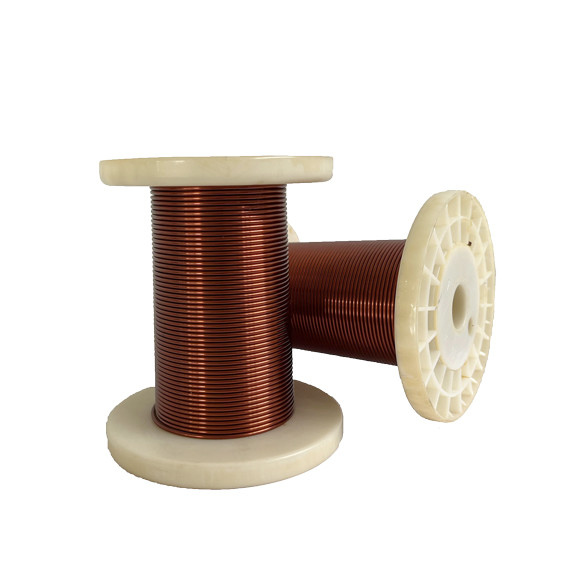

0.10mm-3.2mm PEW Overcoat Polyamide-imide SAI Grade three Thermal Class 155℃ For general motor

Ask Lasest Price
Brand Name :	PEWSC
Model Number :	SAI Grade three
Certification :	UL,ROHS
Price :	Copper price plus processing fee plus freight
Payment Terms :	T/T 100% payment before shipment
Supply Ability :	Delivery 10-15 days after next order
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

0.10mm-3.2mm PEW Overcoat Polyamide-imide SAI Grade three Thermal Class 155℃ For general motor

Manufacture of electronic equipment: Enameled wire SAI is widely used in the manufacture of various electronic equipment, such as computers, cell phones, TVs, stereos and so on. It serves as a connecting wire and is responsible for transmitting current and signals.

Household appliances: In household appliances, enameled wire SAI is often used to connect power lines, control lines, etc. to ensure the normal operation of the equipment.

Communication equipment: In communication equipment, enameled wire SAI is used to connect the components on the circuit board to realize signal transmission and processing.

Automotive electronics: In automotive electronic systems, enameled wire SAI is used to connect various sensors, actuators and controllers to realize intelligent control of vehicles.

Industrial automation: In the field of industrial automation, enameled wire SAI is used to connect various sensors, actuators and controllers to realize the automated control of production process.

Medical Equipment: In medical equipment, enameled wire SAI is used to connect various sensors, actuators and controllers to ensure the accuracy and reliability of the equipment.

Aerospace: In the aerospace field, enameled wire SAI is used to connect various sensors, actuators and controllers to ensure the normal operation of aircraft.

New Energy: In the field of new energy vehicles and solar power generation, enameled wire SAI is used to connect batteries, motors and other key components to realize the efficient conversion and utilization of energy.

In short, as a high-performance wire material, enameled wire SAI is widely used in various electronic and electrical equipment, providing important support for the development of modern science and technology.

GB ---Grade3 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.071	±0.003	0.070	0.072	0.09	0.095	0.018	0.097	4747	13	--	1100
0.080	±0.003	0.079	0.081	0.101	0.107	0.020	0.108	3703	14	100	1200
0.090	±0.003	0.089	0.091	0.113	0.119	0.022	0.120	2900	15	94	1300
0.100	±0.003	0.099	0.101	0.124	0.131	0.023	0.132	2333	16	90	1400
0.112	±0.003	0.111	0.114	0.139	0.146	0.026	0.147	1848	17	88	3900
0.125	±0.003	0.124	0.127	0.154	0.161	0.028	0.163	1475	17	84	4100
0.140	±0.003	0.139	0.142	0.171	0.178	0.030	0.181	1170	18	79	4200
0.160	±0.003	0.159	0.162	0.194	0.201	0.033	0.205	890.6	19	78	4400
0.180	±0.003	0.179	0.182	0.218	0.225	0.036	0.229	700.7	20	75	4700
0.200	±0.003	0.199	0.202	0.241	0.249	0.039	0.252	565.7	21	72	5100
0.224	±0.003	0.223	0.226	0.269	0.277	0.043	0.280	449.5	21	68	5200
0.250	±0.004	0.249	0.253	0.301	0.309	0.048	0.312	362.8	22	65	5500
0.280	±0.004	0.279	0.283	0.333	0.341	0.050	0.345	288.2	22	61	5800
0.315	±0.004	0.314	0.317	0.371	0.38	0.053	0.384	227.0	23	62	6100
0.355	±0.004	0.354	0.357	0.415	0.423	0.057	0.428	178.2	23	59	6400
0.400	±0.005	0.398	0.403	0.464	0.474	0.060	0.478	140.7	24	55	6600
0.450	±0.005	0.448	0.453	0.518	0.528	0.064	0.533	110.9	25	53	6800
0.500	±0.005	0.498	0.503	0.571	0.581	0.067	0.587	89.59	25	51	7000
0.560	±0.006	0.557	0.563	0.635	0.645	0.071	0.653	71.53	26	48	7100
0.630	±0.006	0.627	0.633	0.709	0.721	0.075	0.728	56.38	27	53	7100
0.710	±0.007	0.707	0.714	0.795	0.807	0.080	0.814	44.42	28	50	7200
0.800	±0.008	0.797	0.804	0.89	0.902	0.085	0.911	35.00	28	46	7400
0.900	±0.009	0.897	0.904	0.995	1.007	0.090	1.018	27.65	29	51	7600
1.000	±0.010	0.997	1.004	1.1	1.114	0.095	1.124	22.40	30	47	7600
1.120	±0.011	1.116	1.124	1.223	1.237	0.098	1.248	17.85	30	34	7600
1.250	±0.013	1.246	1.254	1.355	1.369	0.100	1.381	14.35	31	39	7600
1.400	±0.014	1.396	1.406	1.509	1.523	0.103	1.535	11.43	32	36	7600
1.600	±0.016	1.596	1.606	1.714	1.73	0.107	1.740	8.75	32	32	7600
1.800	±0.018	1.796	1.806	1.917	1.933	0.110	1.944	6.91	32		7600
2.000	±0.020	1.994	2.006	2.12	2.136	0.113	2.148	5.60	33		7600
2.240	±0.022	2.234	2.246	2.363	2.381	0.116	2.392	4.46	33		7600
2.500	±0.025	2.494	2.506	2.626	2.644	0.119	2.656	3.58	33		7600
2.800	±0.028	2.794	2.808	2.932	2.95	0.123	2.961	2.86	34		3800
3.150	±0.032	3.144	3.158	3.286	3.306	0.127	3.316	2.26	34		3800
