Pacific Electric Wire & Cable (Shenzhen) Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | PEWSC |
| Model Number : | PEWH AWG 38-8 |
| Certification : | UL,ROHS |
| Price : | Copper Price plus Processing Fee plus Freight |
| Payment Terms : | T/T 100% Payment before Shipment |
| Supply Ability : | Delivery 10-15 Days after Next Order |
| Delivery Time : | 3-5 Work Days |
Excellent Electrical Insulation Performance: SAI utilizes a special silicone resin formulation that provides excellent insulation protection even in high voltage environments. This is very important for special power electronics.
Good flexibility and abrasion resistance: The insulation layer of SAI has been specially treated to provide high flexibility and abrasion resistance. This facilitates the molding and assembly process of motor stator windings.
Excellent radiation resistance: SAI's silicone insulating layer can effectively block a variety of electromagnetic radiation, in some of the strict requirements of electromagnetic compatibility is very suitable for the occasion.

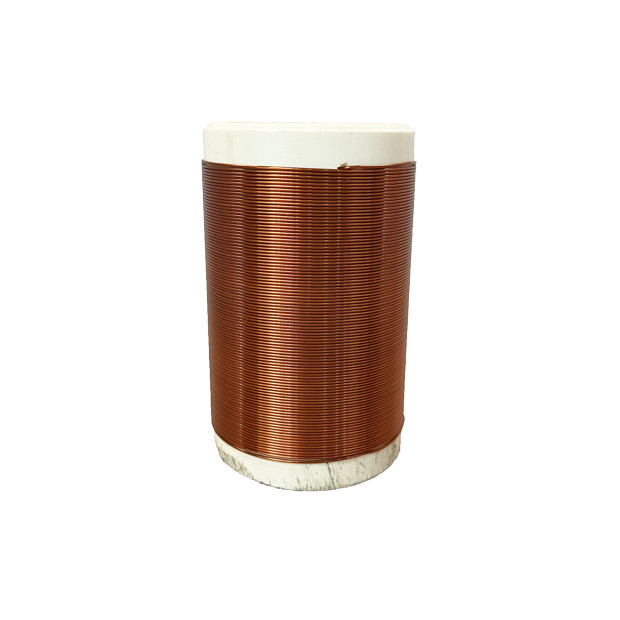

SAI enameled wire is widely used in aerospace, military, high-end motors, transformers and other fields that have strict requirements for insulation and high temperature resistance. Its excellent chemical resistance also makes it suitable for petrochemical and electric power equipment where corrosive environments may be encountered. In addition, SAI series are also widely used in power electronics, rail transportation and other fields that require high reliability.
| NEMA---Heavy | Unit﹕mm | ||||||||||||||||||||
| AWG | Diameter of Conduct | Conductor Control Benchmarks | OD Control Benchmarks | Specification Boundaries | Conductor Resistance 20℃ (Ω/KM) | Insulation breakdownvoltage (v) | Min Elongation (%) | Max. Springiness (°) | Resistance to abrasion | ||||||||||||
| Lower Limit | Upper Limit | Lower Limit | Median | Upper Limit | Min. Increase in Diameter | Max. Finished overall Diameter | Average | Minimum | |||||||||||||
| 44 | 0.051 | +0.002 | 0.050 | 0.052 | 0.062 | 0.064 | 0.066 | 0.010 | 0.066 | 9527.95 | 1300 | 14 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 43 | 0.056 | +0.002 | 0.055 | 0.057 | 0.068 | 0.070 | 0.072 | 0.010 | 0.074 | 7815.03 | 1400 | 15 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 42 | 0.064 | +0.002 | 0.063 | 0.065 | 0.079 | 0.081 | 0.083 | 0.013 | 0.084 | 5899.6 | 1675 | 16 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 41 | 0.071 | +0.003 | 0.070 | 0.072 | 0.086 | 0.088 | 0.090 | 0.013 | 0.094 | 4610.88 | 1675 | 17 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 40 | 0.079 | +0.002 | 0.078 | 0.080 | 0.094 | 0.096 | 0.098 | 0.013 | 0.104 | 3800.62 | 1800 | 17 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 39 | 0.089 | +0.002 | 0.088 | 0.090 | 0.106 | 0.109 | 0.112 | 0.015 | 0.114 | 2968.15 | 1975 | 18 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 38 | 0.102 | +0.002 | 0.101 | 0.103 | 0.122 | 0.125 | 0.128 | 0.018 | 0.130 | 2239.81 | 2150 | 19 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 37 | 0.114 | +0.003 | 0.113 | 0.115 | 0.134 | 0.137 | 0.140 | 0.018 | 0.145 | 1750.03 | 2325 | 20 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 36 | 0.127 | +0.003 | 0.126 | 0.128 | 0.149 | 0.152 | 0.155 | 0.020 | 0.160 | 1427.71 | 2525 | 20 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 35 | 0.142 | +0.003 | 0.141 | 0.143 | 0.167 | 0.170 | 0.173 | 0.023 | 0.178 | 1120.02 | 2750 | 21 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 34 | 0.16 | +0.003 | 0.159 | 0.161 | 0.185 | 0.188 | 0.191 | 0.023 | 0.198 | 890.6 | 2975 | 22 | -- | -- | -- | ||||||
| -0.003 | |||||||||||||||||||||
| 33 | 0.18 | +0.003 | 0.179 | 0.181 | 0.207 | 0.211 | 0.215 | 0.025 | 0.221 | 692.85 | 3250 | 23 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 32 | 0.203 | +0.003 | 0.202 | 0.205 | 0.233 | 0.237 | 0.241 | 0.028 | 0.246 | 543.36 | 3525 | 24 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 31 | 0.226 | +0.003 | 0.225 | 0.228 | 0.258 | 0.262 | 0.266 | 0.030 | 0.274 | 437.51 | 3825 | 24 | -- | -- | -- | ||||||
| -0.002 | |||||||||||||||||||||
| 30 | 0.254 | +0.002 | 0.252 | 0.256 | 0.289 | 0.293 | 0.297 | 0.033 | 0.307 | 348.45 | 4150 | 25 | 66 | 525 | 450 | ||||||
| -0.003 | |||||||||||||||||||||
| 29 | 0.287 | +0.003 | 0.285 | 0.289 | 0.328 | 0.332 | 0.336 | 0.038 | 0.338 | 272.17 | 4250 | 26 | 61 | 560 | 480 | ||||||
| -0.003 | |||||||||||||||||||||
| 28 | 0.32 | +0.003 | 0.318 | 0.322 | 0.364 | 0.368 | 0.372 | 0.041 | 0.373 | 217.08 | 4375 | 26 | 55 | 595 | 510 | ||||||
| -0.002 | |||||||||||||||||||||
| 27 | 0.361 | +0.002 | 0.358 | 0.363 | 0.404 | 0.409 | 0.414 | 0.041 | 0.419 | 171.28 | 4500 | 27 | 50 | 635 | 540 | ||||||
| -0.003 | |||||||||||||||||||||
| 26 | 0.404 | +0.002 | 0.401 | 0.406 | 0.449 | 0.454 | 0.459 | 0.043 | 0.462 | 137.89 | 4600 | 27 | 76 | 675 | 575 | ||||||
| -0.005 | |||||||||||||||||||||
| 25 | 0.455 | +0.002 | 0.452 | 0.457 | 0.503 | 0.508 | 0.513 | 0.046 | 0.516 | 108.41 | 4725 | 28 | 72 | 720 | 615 | ||||||
| -0.005 | |||||||||||||||||||||
| 24 | 0.511 | +0.002 | 0.507 | 0.513 | 0.561 | 0.566 | 0.571 | 0.048 | 0.577 | 86.08 | 4850 | 28 | 67 | 770 | 655 | ||||||
| -0.006 | |||||||||||||||||||||
| 23 | 0.574 | +0.003 | 0.570 | 0.576 | 0.627 | 0.632 | 0.637 | 0.051 | 0.643 | 67.80 | 5000 | 29 | 62 | 820 | 700 | ||||||
| -0.005 | |||||||||||||||||||||
| 22 | 0.643 | +0.002 | 0.639 | 0.645 | 0.698 | 0.703 | 0.708 | 0.053 | 0.714 | 54.44 | 5125 | 29 | 58 | 880 | 750 | ||||||
| -0.008 | |||||||||||||||||||||
| 21 | 0.724 | +0.002 | 0.720 | 0.726 | 0.782 | 0.788 | 0.794 | 0.056 | 0.800 | 42.82 | 5250 | 30 | 53 | 940 | 800 | ||||||
| -0.008 | |||||||||||||||||||||
| 20 | 0.813 | +0.005 | 0.808 | 0.816 | 0.877 | 0.883 | 0.889 | 0.061 | 0.892 | 33.88 | 5400 | 30 | 66 | 1000 | 850 | ||||||
| -0.008 | |||||||||||||||||||||
| 19 | 0.912 | +0.005 | 0.907 | 0.915 | 0.979 | 0.985 | 0.991 | 0.064 | 0.993 | 26.98 | 5550 | 31 | 62 | 1070 | 910 | ||||||
| -0.010 | |||||||||||||||||||||
| 18 | 1.024 | +0.005 | 1.019 | 1.027 | 1.093 | 1.099 | 1.105 | 0.066 | 1.110 | 21.39 | 5700 | 32 | 58 | 1150 | 980 | ||||||
| -0.011 | |||||||||||||||||||||
| 17 | 1.151 | +0.005 | 1.145 | 1.154 | 1.225 | 1.231 | 1.237 | 0.071 | 1.240 | 16.95 | 5850 | 32 | 54 | 1230 | 1045 | ||||||
| -0.013 | |||||||||||||||||||||
| 16 | 1.29 | +0.008 | 1.284 | 1.293 | 1.368 | 1.374 | 1.380 | 0.074 | 1.384 | 13.44 | 6000 | 33 | 50 | 1310 | 1115 | ||||||
| -0.012 | |||||||||||||||||||||
| 15 | 1.450 | +0.008 | 1.444 | 1.453 | 1.530 | 1.536 | 1.542 | 0.076 | 1.549 | 10.66 | 6175 | 33 | 46 | 1400 | 1190 | ||||||
| -0.015 | |||||||||||||||||||||
| 14 | 1.628 | +0.008 | 1.621 | 1.631 | 1.713 | 1.720 | 1.727 | 0.081 | 1.732 | 8.44 | 6325 | 33 | 42 | 1490 | 1270 | ||||||
| -0.015 | |||||||||||||||||||||
| 13 | 1.829 | +0.010 | 1.822 | 1.832 | 1.915 | 1.922 | 1.929 | 0.081 | 1.935 | 6.69 | 5600 | 34 | -- | 1490 | 1270 | ||||||
| -0.018 | |||||||||||||||||||||
| 12 | 2.052 | +0.010 | 2.044 | 2.056 | 2.138 | 2.146 | 2.154 | 0.081 | 2.162 | 5.32 | 5800 | 34 | -- | 1490 | 1270 | ||||||
| -0.02 | |||||||||||||||||||||
| 11 | 2.304 | +0.012 | 2.296 | 2.308 | 2.393 | 2.402 | 2.411 | 0.084 | 2.418 | 4.22 | 6000 | 35 | -- | 1490 | 1270 | ||||||
| -0.023 | |||||||||||||||||||||
| 10 | 2.588 | +0.013 | 2.580 | 2.592 | 2.682 | 2.690 | 2.698 | 0.086 | 2.703 | 3.34 | 6200 | 35 | -- | 1940 | 1270 | ||||||
| -0.025 | |||||||||||||||||||||
| 9 | 2.906 | +0.015 | 2.896 | 2.910 | 3.000 | 3.009 | 3.018 | 0.086 | 3.023 | 2.65 | 3200 | 36 | -- | -- | -- | ||||||
| -0.028 | |||||||||||||||||||||
| 8 | 3.264 | +0.018 | 3.254 | 3.268 | 3.361 | 3.370 | 3.378 | 0.089 | 3.383 | 2.1 | 3300 | 36 | -- | -- | -- | ||||||
| -0.033 | |||||||||||||||||||||
| The above single wear resistance values apply to MW-5C 35C 81C 30C 75C 79C 80C 76C 28C 24C. The voltage resistance applies to MW-5C 35C 81C 30C 75C 79C 26C 77C. | |||||||||||||||||||||
|
|
