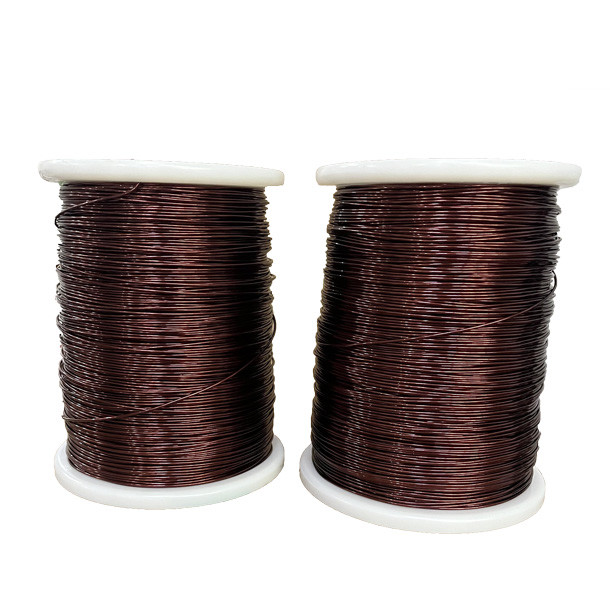

HAI Grade one Overcoat Polyamide-Inmide Enameled Copper Winding Wire Thermal Class 180℃

Ask Lasest Price
Brand Name :	PEWSC
Model Number :	HAI Grade one
Certification :	UL,ROHS
Price :	Copper price plus processing fee plus freight
Payment Terms :	T/T 100% payment before shipment
Supply Ability :	Delivery 10-15 days after next order
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

HAI Grade one Overcoat Polyamide-Inmide Enameled Copper Winding Wire Thermal Class 180℃

Grade 1 is the thinnest insulation level, suitable for applications with strict requirements on space and weight.

HAI Enameled Wire is a premium electromagnetic wire material designed to provide long-lasting performance and reliability, and is ideally suited for use in a variety of electrical applications, especially in demanding industrial and commercial environments. This enameled wire utilizes selected raw materials and advanced manufacturing techniques to ensure excellent insulation capabilities and resistance to heat, cold and chemicals.

HAI enameled wire is widely used in high-efficiency motors, transformers, household appliances, and electrical devices in automotive and aerospace systems. In these applications, it not only enhances the overall performance and efficiency of the system, but also effectively extends the service life of the equipment and reduces maintenance costs.

Environmentally friendly: HAI enameled wire is made of environmentally friendly materials and meets international environmental standards, making it safer to use and minimizing its impact on the environment.

Cost-effective: Compared with other similar products, HAI enameled wire guarantees high quality and long-term stable electrical performance at a reasonable price, which has a high cost-effective ratio.

HAI Grade one Overcoat Polyamide-Inmide Enameled Copper Winding Wire Thermal Class 180℃

GB ---Grade1 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.040	±0.002	0.039	0.041	0.045	0.049	0.004	0.049	15202	9		250
0.045	±0.003	0.044	0.046	0.051	0.055	0.005	0.055	12445	9		275
0.050	±0.003	0.049	0.051	0.056	0.060	0.005	0.060	9938	10		300
0.056	±0.003	0.055	0.057	0.063	0.067	0.006	0.067	7815	10		325
0.063	±0.003	0.062	0.064	0.071	0.076	0.007	0.076	6098	12		375
0.071	±0.003	0.070	0.072	0.079	0.084	0.007	0.084	4747	13		425
0.080	±0.003	0.079	0.081	0.088	0.094	0.007	0.094	3703	14	70	425
0.090	±0.003	0.089	0.091	0.099	0.105	0.008	0.105	2900	15	67	500
0.100	±0.003	0.099	0.101	0.109	0.116	0.008	0.117	2333	16	64	500
0.112	±0.003	0.111	0.114	0.122	0.129	0.009	0.130	1848	17	64	1300
0.125	±0.003	0.124	0.127	0.136	0.143	0.010	0.144	1475	17	62	1500
0.140	±0.003	0.139	0.142	0.152	0.159	0.011	0.160	1170	18	59	1600
0.160	±0.003	0.159	0.162	0.173	0.180	0.012	0.182	890.6	19	59	1700
0.180	±0.003	0.179	0.182	0.195	0.202	0.013	0.204	700.7	20	57	1700
0.200	±0.003	0.199	0.202	0.216	0.224	0.014	0.226	565.7	21	54	1800
0.224	±0.003	0.223	0.226	0.241	0.249	0.015	0.252	449.5	21	51	1900
0.250	±0.004	0.249	0.253	0.270	0.278	0.017	0.281	362.8	22	49	2100
0.280	±0.004	0.279	0.283	0.301	0.309	0.018	0.312	288.2	22	47	2200
0.315	±0.004	0.314	0.317	0.337	0.346	0.019	0.349	227.0	23	50	2200
0.355	±0.004	0.354	0.357	0.378	0.387	0.020	0.392	178.2	23	48	2300
0.400	±0.005	0.398	0.403	0.425	0.435	0.021	0.439	140.7	24	45	2300
0.450	±0.005	0.448	0.453	0.476	0.486	0.022	0.491	110.9	25	44	2300
0.500	±0.005	0.498	0.503	0.528	0.538	0.024	0.544	89.59	25	43	2400
0.560	±0.006	0.557	0.563	0.589	0.599	0.025	0.606	71.53	26	41	2500
0.630	±0.006	0.627	0.633	0.661	0.673	0.027	0.679	56.38	27	46	2600
0.710	±0.007	0.707	0.714	0.743	0.755	0.028	0.672	44.42	28	44	2600
0.800	±0.008	0.797	0.804	0.835	0.847	0.030	0.855	35.00	28	41	2600
0.900	±0.009	0.897	0.904	0.937	0.949	0.032	0.959	27.65	29	45	2700
1.000	±0.010	0.997	1.004	1.039	1.053	0.034	1.062	22.40	30	42	2700
1.120	±0.011	1.116	1.124	1.159	1.193	0.034	1.184	17.85	30	39	2700
1.250	±0.013	1.246	1.254	1.290	1.304	0.035	1.316	14.35	31	35	2700
1.400	±0.014	1.396	1.406	1.443	1.458	0.036	1.468	11.43	32	32	2700
1.600	±0.016	1.596	1.606	1.645	1.660	0.038	1.670	8.75	32	28	2700
