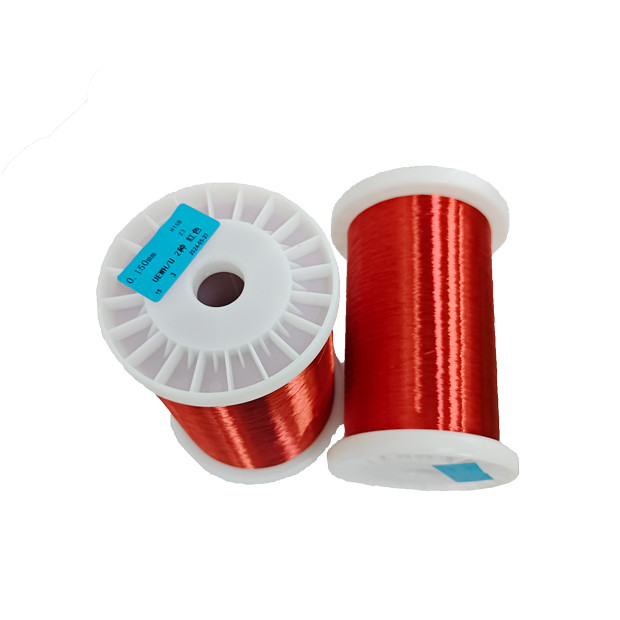

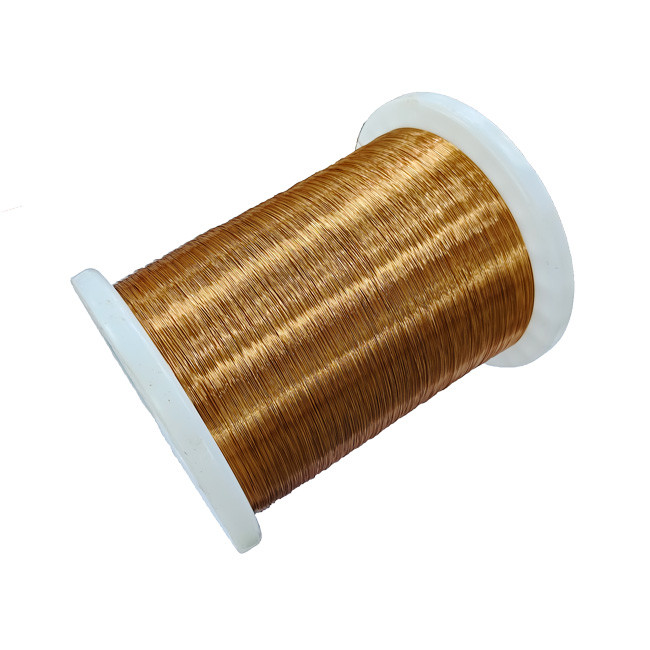

Overcoat Polyamide Enamel Insulated Copper Wire heat resistant 0.04mm - 1.00mm

Ask Lasest Price
Brand Name :	PEWSC
Model Number :	0.04-2.60mm
Certification :	UL
Price :	Copper price plus processing fee plus freight
Payment Terms :	T/T 100% payment before shipment
Supply Ability :	Delivery 10-15 days after next order
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

Overcoat Polyamide Enamel Insulated Copper Wire heat resistant 0.04mm - 1.00mm

0.04mm-1.00mm UEWH overcoat polyamide enamelled wire UEWH U2 Thermal class 180℃

UEWH is an enameled wire product that utilizes polyimide as an insulating material. Compared with the aforementioned UEHN series, UEWH has the following characteristics.

1. Extremely high heat resistance: UEWH is heat resistant up to 180°C, making it stable and reliable for long term operation in high temperature environments. This makes it ideal for motor and transformer applications where extreme temperature conditions need to be tolerated.

2. Excellent Mechanical Properties: UEWH adopts a special polymer formulation and production process, which has extremely high tensile strength and wear resistance.

UEWH is able to withstand a wide range of mechanical stresses during the manufacture of motor stator windings.

3.Good chemical resistance: UEWH's polyimide insulation has excellent corrosion resistance to most chemicals and solvents, allowing it to work stably for a long time in harsh environments.

Overcoat Polyamide Enamel Insulated Copper Wire heat resistant 0.04mm - 1.00mm

JIS---2種													Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter (mm)	Max. Finished overall Diameter (mm)	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.04±0.002	0.039	0.041	0.047	0.050	0.053	0.006	0.056	15670	200	7	11	--	--	--
0.05±0.003	0.049	0.051	0.059	0.062	0.065	0.008	0.069	10240	950	10	14	--	--	--
0.06±0.003	0.059	0.061	0.069	0.072	0.075	0.008	0.081	6966	950	10	15	--	--	--
0.07±0.003	0.069	0.071	0.079	0.082	0.085	0.008	0.091	4990	950	10	17	--	--	--
0.08±0.003	0.079	0.081	0.091	0.095	0.099	0.010	0.103	3778	1100	10	17	--	--	--
0.09±0.003	0.089	0.091	0.102	0.106	0.110	0.010	0.113	2959	1100	10	18	--	--	--
0.10±0.003	0.099	0.101	0.112	0.116	0.120	0.010	0.125	2381	1100	15	19	--	--	--
0.11±0.003	0.109	0.111	0.122	0.126	0.130	0.010	0.135	1957	1100	15	19	--	--	--
0.12±0.003	0.119	0.121	0.134	0.138	0.142	0.012	0.147	1636	1300	15	20	--	--	--
0.13±0.003	0.129	0.131	0.144	0.148	0.152	0.012	0.157	1389	1300	15	20	--	--	--
0.14±0.003	0.139	0.141	0.154	0.158	0.162	0.012	0.167	1193	1300	15	21	--	--	--
0.15±0.003	0.149	0.151	0.164	0.168	0.172	0.012	0.177	1037	1300	15	21	--	--	--
0.16±0.003	0.159	0.161	0.176	0.180	0.184	0.014	0.189	908.8	1300	15	22	--	--	--
0.17±0.003	0.169	0.171	0.186	0.190	0.194	0.014	0.199	803.2	1300	15	23	--	--	--
0.18±0.003	0.179	0.181	0.198	0.202	0.206	0.016	0.211	715.0	1600	15	23	--	--	--
0.19±0.003	0.189	0.191	0.208	0.212	0.216	0.016	0.221	640.6	1600	15	23	--	--	--
0.20±0.003	0.198	0.201	0.218	0.222	0.226	0.016	0.231	577.2	1600	15	24	--	--	--
0.21±0.003	0.208	0.212	0.228	0.232	0.236	0.016	0.241	522.8	1600	15	24	--	--	--
0.22±0.004	0.218	0.222	0.238	0.242	0.246	0.016	0.252	480.1	1600	15	24	--	--	--
0.23±0.004	0.228	0.232	0.250	0.254	0.258	0.018	0.264	438.6	1600	15	24	--	--	--
0.24±0.004	0.238	0.242	0.260	0.264	0.268	0.018	0.274	402.2	1600	15	24	--	--	--
0.25±0.004	0.248	0.252	0.270	0.274	0.278	0.018	0.284	370.2	1600	15	25	66	--	--
0.26±0.004	0.258	0.262	0.280	0.284	0.288	0.018	0.294	341.8	1600	15	25	66	243	204
0.27±0.004	0.268	0.272	0.290	0.294	0.298	0.018	0.304	316.6	1600	15	26	61	243	204
0.28±0.004	0.278	0.282	0.300	0.304	0.308	0.018	0.314	294.1	1600	15	26	61	243	204
0.29±0.004	0.288	0.292	0.310	0.315	0.320	0.018	0.324	273.9	1600	20	26	61	243	204
0.30±0.005	0.298	0.302	0.322	0.327	0.332	0.020	0.337	254.0	2000	20	26	61	265	235
0.32±0.005	0.317	0.322	0.342	0.347	0.352	0.020	0.357	222.8	2000	20	26	55	275	235
0.35±0.005	0.347	0.352	0.372	0.377	0.382	0.020	0.387	185.7	2000	20	27	50	275	235
0.37±0.005	0.367	0.372	0.392	0.397	0.402	0.020	0.407	165.9	2000	20	27	50	275	235
0.40±0.005	0.397	0.402	0.424	0.429	0.434	0.022	0.439	141.7	2000	20	27	76	306	265
0.45±0.006	0.446	0.452	0.474	0.479	0.484	0.022	0.490	112.1	2000	20	28	72	316	265
0.50±0.006	0.496	0.502	0.526	0.531	0.536	0.024	0.542	89.95	2150	20	28	67	357	296
0.55±0.006	0.546	0.552	0.576	0.581	0.586	0.024	0.592	74.18	2150	20	29	62	357	296
0.60±0.008	0.596	0.602	0.626	0.632	0.638	0.024	0.644	62.64	2150	20	29	62	357	306
0.65±0.008	0.646	0.653	0.677	0.683	0.689	0.024	0.694	53.26	2150	20	29	58	367	306
0.70±0.008	0.696	0.703	0.729	0.735	0.741	0.026	0.746	45.84	2150	20	30	53	398	337
0.75±0.008	0.746	0.753	0.781	0.787	0.793	0.028	0.798	39.87	2400	20	30	53	439	367
0.80±0.010	0.796	0.803	0.834	0.840	0.846	0.030	0.852	35.17	2400	25	30	66	479	398
0.85±0.010	0.846	0.853	0.884	0.890	0.896	0.030	0.904	31.11	2400	25	30	66	479	398
0.90±0.010	0.896	0.903	0.936	0.942	0.948	0.032	0.956	27.71	2400	25	31	62	510	428
0.95±0.010	0.946	0.953	0.988	0.994	1.000	0.034	1.008	24.84	2400	25	31	62	551	459
1.00±0.012	0.996	1.003	1.038	1.045	1.052	0.034	1.062	22.49	2400	25	32	58	551	469
1.10±0.012	1.095	1.103	1.142	1.149	1.156	0.036	1.164	18.54	3050	25	32	54	551	469
1.20±0.012	1.195	1.203	1.242	1.249	1.258	0.036	1.264	15.55	3050	25	32	54	551	469
1.30±0.012	1.295	1.305	1.344	1.351	1.358	0.040	1.364	13.23	3400	25	33	50	622	520
1.40±0.012	1.395	1.405	1.444	1.451	1.458	0.040	1.464	11.39	3400	25	33	46	622	520
1.50±0.012	1.495	1.505	1.546	1.553	1.560	0.040	1.568	9.91	3400	25	33	46	622	520
1.60±0.012	1.595	1.605	1.646	1.653	1.660	0.040	1.668	8.71	3400	25	33	42	622	520
