Polyester Imide Copper Round Enamelled Wire For High Temperature Motor

Ask Lasest Price
Brand Name :	PEWSC
Model Number :	PEWH Grade two
Certification :	UL,ROHS
Price :	Copper price plus processing fee plus freight
Payment Terms :	T/T 100% payment before shipment
Supply Ability :	Delivery 10-15 days after next order
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

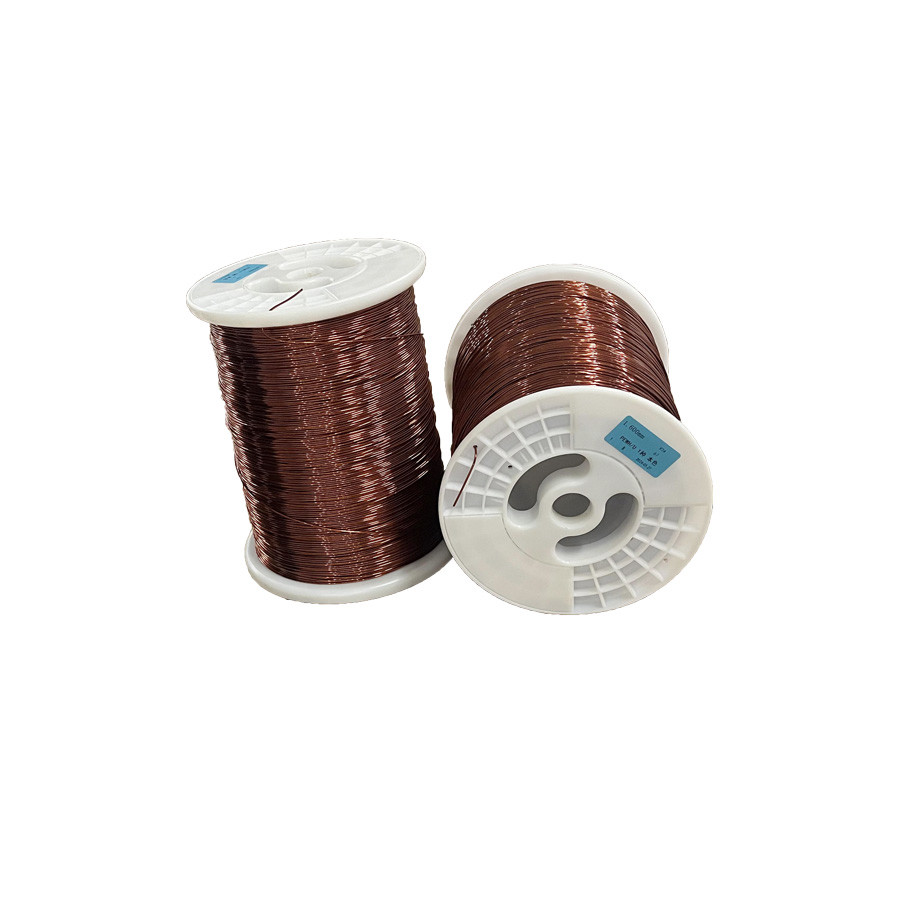

Polyester Imide Copper Round Enamelled Wire For High Temperature Motor

Grade2 and Grade3 have a thicker insulation layer, making them safer and more reliable for use at higher voltages and temperatures.

Excellent Mechanical Strength: The PEWH outer polyimide material has high tensile strength and abrasion resistance, which can better withstand the various mechanical stresses during the manufacturing process of motor stator windings.

Excellent chemical resistance: PEWH polyimide outer layer has strong corrosion resistance to most chemicals and solvents, which enables it to work stably for a long time in harsh environments.

PEWH enameled wire is widely used in high-end industrial equipment, precision medical equipment, new energy technology and other demanding electrical systems. In these applications, it not only enhances the overall effectiveness and efficiency of the system, but also effectively extends the service life of the equipment and reduces maintenance costs.

In short, PEWH enameled wire is the market's choice for high-end, reliable magnet wire for professionals and organizations seeking optimal performance and maximum reliability. Choosing PEWH is a guarantee of high quality and long-term stable electrical performance.

Polyester Imide Copper Round Enamelled Wire For High Temperature Motor

GB ---Grade2 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.040	±0.002	0.039	0.041	0.049	0.053	0.008	0.054	15202	9		475
0.045	±0.003	0.044	0.046	0.056	0.060	0.010	0.061	12445	9		550
0.050	±0.003	0.049	0.051	0.061	0.065	0.010	0.066	9938	10		600
0.056	±0.003	0.055	0.057	0.067	0.071	0.010	0.074	7815	10		650
0.063	±0.003	0.062	0.064	0.076	0.081	0.012	0.083	6098	12		700
0.071	±0.003	0.070	0.072	0.084	0.089	0.012	0.091	4747	13		700
0.080	±0.003	0.079	0.081	0.095	0.100	0.014	0.101	3703	14	80	850
0.090	±0.003	0.089	0.091	0.106	0.111	0.015	0.113	2900	15	77	900
0.100	±0.003	0.099	0.101	0.117	0.122	0.016	0.125	2333	16	73	950
0.112	±0.003	0.111	0.114	0.130	0.136	0.017	0.139	1848	17	73	2700
0.125	±0.003	0.124	0.127	0.145	0.151	0.019	0.154	1475	17	70	2800
0.140	±0.003	0.139	0.142	0.162	0.168	0.021	0.171	1170	18	67	3000
0.160	±0.003	0.159	0.162	0.184	0.190	0.023	0.194	890.6	19	67	3200
0.180	±0.003	0.179	0.182	0.207	0.213	0.025	0.217	700.7	20	65	3300
0.200	±0.003	0.199	0.202	0.229	0.235	0.027	0.239	565.7	21	62	3500
0.224	±0.003	0.223	0.226	0.255	0.262	0.029	0.266	449.5	21	59	3700
0.250	±0.004	0.249	0.253	0.285	0.292	0.032	0.297	362.8	22	56	3900
0.280	±0.004	0.279	0.283	0.316	0.323	0.033	0.329	288.2	22	53	4000
0.315	±0.004	0.314	0.317	0.353	0.361	0.035	0.367	227.0	23	55	4100
0.355	±0.004	0.354	0.357	0.396	0.404	0.038	0.411	178.2	23	53	4300
0.400	±0.005	0.398	0.403	0.444	0.454	0.040	0.459	140.7	24	50	4400
0.450	±0.005	0.448	0.453	0.496	0.506	0.042	0.513	110.9	25	48	4400
0.500	±0.005	0.498	0.503	0.549	0.559	0.045	0.566	89.59	25	47	4600
0.560	±0.006	0.557	0.563	0.611	0.621	0.047	0.630	71.53	26	44	4600
0.630	±0.006	0.627	0.633	0.684	0.696	0.050	0.704	56.38	27	50	4800
0.710	±0.007	0.707	0.714	0.768	0.780	0.053	0.789	44.42	28	47	4800
0.800	±0.008	0.797	0.804	0.861	0.873	0.056	0.884	35.00	28	43	4900
0.900	±0.009	0.897	0.904	0.965	0.977	0.060	0.989	27.65	29	48	5000
1.000	±0.010	0.997	1.004	1.068	1.082	0.063	1.094	22.40	30	45	5000
1.120	±0.011	1.116	1.124	1.190	1.204	0.065	1.217	17.85	30	41	5000
1.250	±0.013	1.246	1.254	1.322	1.336	0.067	1.349	14.35	31	37	5000
1.400	±0.014	1.396	1.406	1.476	1.490	0.069	1.502	11.43	32	34	5000
1.600	±0.016	1.596	1.606	1.678	1.694	0.071	1.706	8.75	32	30	5000
1.800	±0.018	1.796	1.806	1.880	1.896	0.073	1.909	6.91	32		5000
2.000	±0.020	1.994	2.006	2.082	2.098	0.075	2.112	5.60	33		5000
2.240	±0.022	2.234	2.246	2.324	2.342	0.077	2.355	4.46	33		5000
2.500	±0.025	2.494	2.506	2.586	2.604	0.079	2.618	3.58	33		5000
2.800	±0.028	2.794	2.808	2.890	2.908	0.081	2.922	2.86	34		2500
3.150	±0.032	3.144	3.158	3.243	3.263	0.084	3.276	2.26	34		2500
