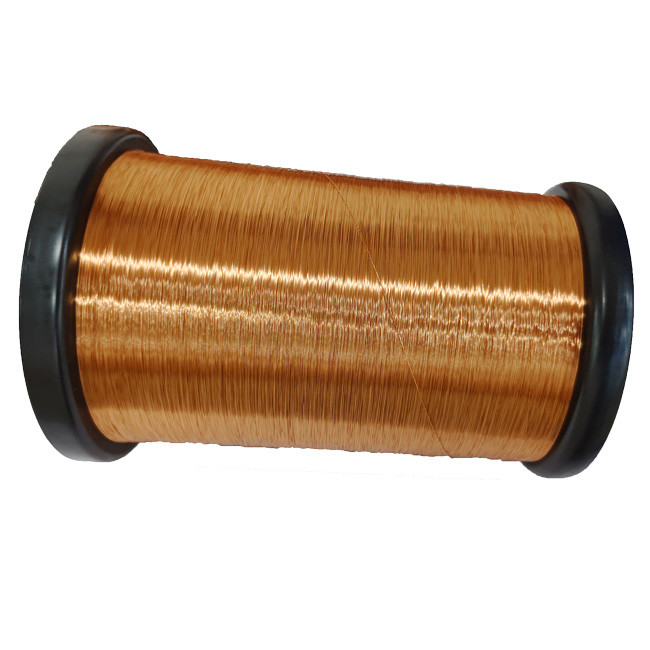

UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated

Ask Lasest Price
Brand Name :	PEWSC
Model Number :	UEFN Grade one
Certification :	UL
Price :	Copper price plus processing fee plus freight
Payment Terms :	T/T 100% payment before shipment
Supply Ability :	Delivery 10-15 days after next order
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated

Grade one is the thinnest insulation class for applications where space and weight are critical.

High-frequency performance: UEF1 enameled wire is suitable for high-frequency signal transmission, which means it can maintain good electrical properties under high-frequency conditions, suitable for use in electronics, electrical appliances and other fields.

Dyeable Characteristics: UEF1 enameled wire has dyeable characteristics, which makes it possible to quickly identify and differentiate different connecting wires through color coding when carrying out maintenance and overhauling of electrical equipment, which greatly improves work efficiency.

Direct Weldability: UEF1 enameled wire has direct weldability, which means that the windings and coils can be directly welded during the motor manufacturing process, simplifying the welding process and reducing the cost of motor manufacturing.

UEFN's insulation layer contains special conductive fillers that effectively block external electromagnetic fields. This gives UEFN an advantage in applications with strict EMC requirements.

Overall, UEFN is a high-end enamelled wire with outstanding performance in terms of abrasion resistance, flexibility, heat resistance and electromagnetic shielding. It is widely used in the manufacturing of windings for high power motors, transformers and other industrial electrical equipment.

UEFN Grade One Round Overcoat Polyamide Enamel Wire 0.04mm - 2.60mm UL Certificated

GB ---Grade1 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.040	±0.002	0.039	0.041	0.045	0.049	0.004	0.049	15202	9		250
0.045	±0.003	0.044	0.046	0.051	0.055	0.005	0.055	12445	9		275
0.050	±0.003	0.049	0.051	0.056	0.060	0.005	0.060	9938	10		300
0.056	±0.003	0.055	0.057	0.063	0.067	0.006	0.067	7815	10		325
0.063	±0.003	0.062	0.064	0.071	0.076	0.007	0.076	6098	12		375
0.071	±0.003	0.070	0.072	0.079	0.084	0.007	0.084	4747	13		425
0.080	±0.003	0.079	0.081	0.088	0.094	0.007	0.094	3703	14	70	425
0.090	±0.003	0.089	0.091	0.099	0.105	0.008	0.105	2900	15	67	500
0.100	±0.003	0.099	0.101	0.109	0.116	0.008	0.117	2333	16	64	500
0.112	±0.003	0.111	0.114	0.122	0.129	0.009	0.130	1848	17	64	1300
0.125	±0.003	0.124	0.127	0.136	0.143	0.010	0.144	1475	17	62	1500
0.140	±0.003	0.139	0.142	0.152	0.159	0.011	0.160	1170	18	59	1600
0.160	±0.003	0.159	0.162	0.173	0.180	0.012	0.182	890.6	19	59	1700
0.180	±0.003	0.179	0.182	0.195	0.202	0.013	0.204	700.7	20	57	1700
0.200	±0.003	0.199	0.202	0.216	0.224	0.014	0.226	565.7	21	54	1800
0.224	±0.003	0.223	0.226	0.241	0.249	0.015	0.252	449.5	21	51	1900
0.250	±0.004	0.249	0.253	0.270	0.278	0.017	0.281	362.8	22	49	2100
0.280	±0.004	0.279	0.283	0.301	0.309	0.018	0.312	288.2	22	47	2200
0.315	±0.004	0.314	0.317	0.337	0.346	0.019	0.349	227.0	23	50	2200
0.355	±0.004	0.354	0.357	0.378	0.387	0.020	0.392	178.2	23	48	2300
0.400	±0.005	0.398	0.403	0.425	0.435	0.021	0.439	140.7	24	45	2300
0.450	±0.005	0.448	0.453	0.476	0.486	0.022	0.491	110.9	25	44	2300
0.500	±0.005	0.498	0.503	0.528	0.538	0.024	0.544	89.59	25	43	2400
0.560	±0.006	0.557	0.563	0.589	0.599	0.025	0.606	71.53	26	41	2500
0.630	±0.006	0.627	0.633	0.661	0.673	0.027	0.679	56.38	27	46	2600
0.710	±0.007	0.707	0.714	0.743	0.755	0.028	0.672	44.42	28	44	2600
0.800	±0.008	0.797	0.804	0.835	0.847	0.030	0.855	35.00	28	41	2600
0.900	±0.009	0.897	0.904	0.937	0.949	0.032	0.959	27.65	29	45	2700
1.000	±0.010	0.997	1.004	1.039	1.053	0.034	1.062	22.40	30	42	2700
1.120	±0.011	1.116	1.124	1.159	1.193	0.034	1.184	17.85	30	39	2700
1.250	±0.013	1.246	1.254	1.290	1.304	0.035	1.316	14.35	31	35	2700
1.400	±0.014	1.396	1.406	1.443	1.458	0.036	1.468	11.43	32	32	2700
1.600	±0.016	1.596	1.606	1.645	1.660	0.038	1.670	8.75	32	28	2700
