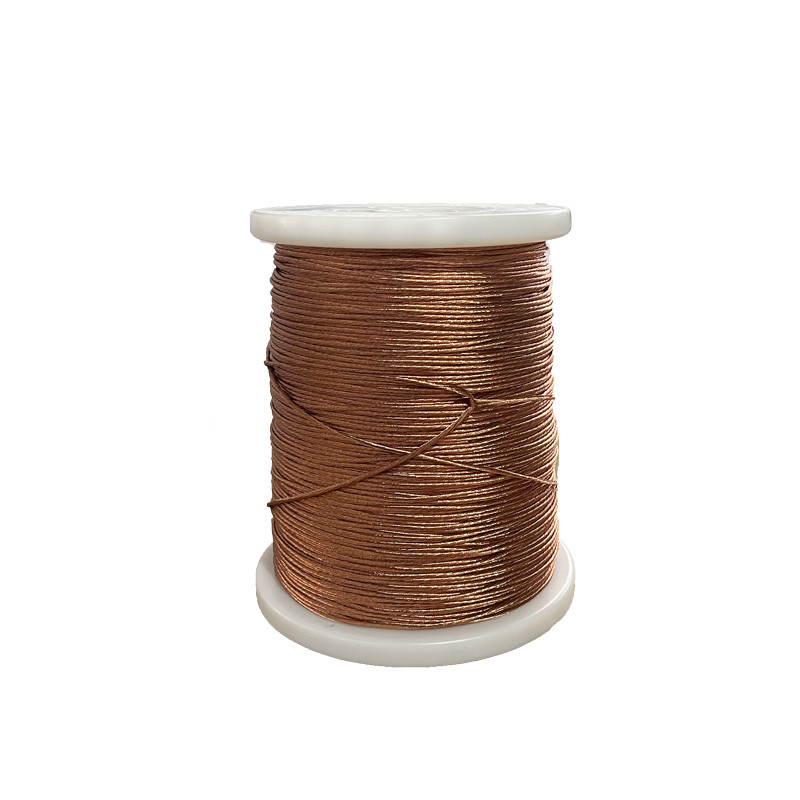

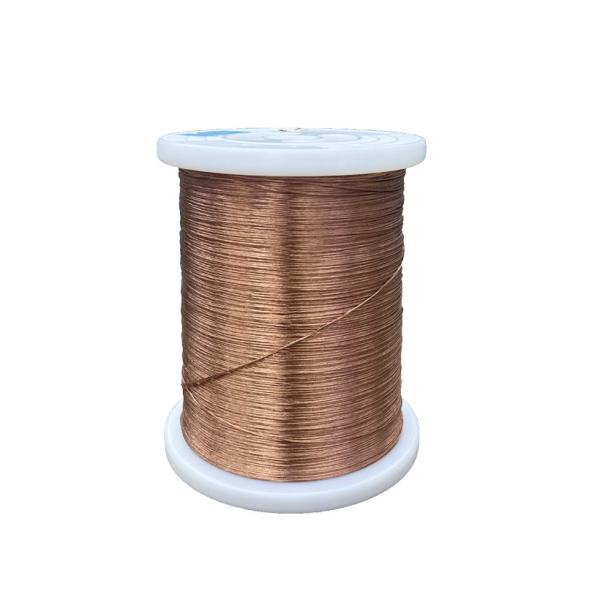

Polyurethane Twisted Litz Wire / Enamelled Copper Cable Heavy Size 0.079x20

Ask Lasest Price
Brand Name :	PEWSC
Model Number :	UEFN/U 155℃ Heavy Size 0.079x20
Certification :	ROHS
Price :	Copper price plus processing fee plus freight
Payment Terms :	T/T 100% payment before shipment
Supply Ability :	Delivery 10-15 days after next order
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

Polyurethane Twisted Litz Wire / Enamelled Copper Cable Heavy Size 0.079x20

Polyurethane Enamelled Copper Twisted Wire UEFN/U 155℃ Heavy Size 0.079x20

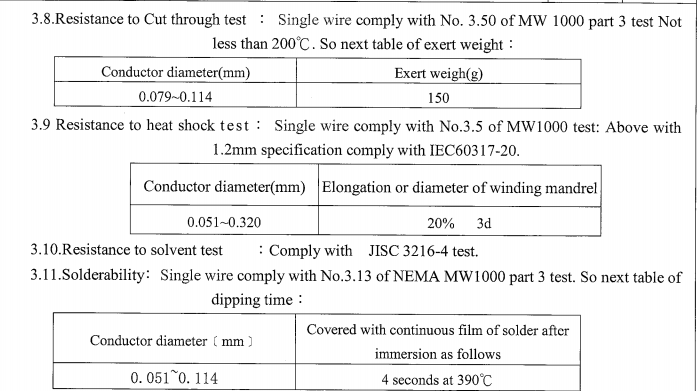

3.Test methods :

3.1 Appearance :Visual inspection

3.2 Dimension : Comply with No. 3.2.1.1 ofNEMA MW1000 part 3 test.3.

3Pinhole :Comply with JSC 3216-5(length of sample is 6 meters).

3.4 Flexibility :Single wire comply with No. 3.3.1 ofNEMA MW1000 part 3 test.

3.5.Adherence:Single wire comply with No, 3.3.1 ofNEMA MW1000 part 3 test.

3.6 Resistance to abrasion : Single wire comply with No. 3.59 ofNEMA MW1000 part 3 test.

3.7 Dielectric breakdown voltage : Comply with JISC3216-5 test, Next table of hook no and
twisted numer (twisted wire).

Polyurethane Twisted Litz Wire / Enamelled Copper Cable Heavy Size 0.079x20

JIS---0種													Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)	Min Elongation(%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min.Increase in Diameter (mm)	Max. Finished overall Diameter (mm)	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.06±0.003	0.059	0.061	0.093	0.098	0.103	0.030	0.110	6966	2500	10	15	--	--	--
0.07±0.003	0.069	0.071	0.103	0.108	0.113	0.030	0.120	4990	2500	10	17	--	--	--
0.08±0.003	0.079	0.081	0.115	0.120	0.125	0.032	0.133	3778	3000	10	17	--	--	--
0.09±0.003	0.089	0.091	0.125	0.130	0.135	0.032	0.143	2959	3000	10	18	--	--	--
0.10±0.008	0.098	0.101	0.134	0.139	0.144	0.032	0.156	2647	3500	15	19	--	--	--
0.11±0.008	0.108	0.111	0.144	0.149	0.154	0.032	0.166	2153	3500	15	19	--	--	--
0.12±0.008	0.118	0.121	0.156	0.161	0.166	0.034	0.180	1786	3750	15	20	--	--	--
0.13±0.008	0.128	0.131	0.162	0.171	0.176	0.034	0.190	1505	3750	15	20	--	--	--
0.14±0.008	0.138	0.141	0.176	0.181	0.186	0.034	0.200	1286	3750	15	21	--	--	--
0.15±0.008	0.148	0.151	0.186	0.191	0.196	0.034	0.210	1111	3750	15	21	--	--	--
0.16±0.008	0.158	0.161	0.198	0.203	0.208	0.036	0.222	969.5	3750	15	22	--	--	--
0.17±0.008	0.168	0.171	0.208	0.213	0.218	0.036	0.232	853.5	3750	15	23	--	--	--
0.18±0.008	0.178	0.181	0.220	0.225	0.230	0.038	0.246	757.2	3800	15	23	--	--	--
0.19±0.008	0.188	0.191	0.230	0.235	0.240	0.038	0.256	676.2	3800	15	23	--	--	--
0.20±0.008	0.198	0.201	0.240	0.245	0.250	0.038	0.266	607.6	3800	15	24	--	--	--
0.21±0.008	0.207	0.212	0.250	0.255	0.260	0.038	0.276	549.0	3800	15	24	--	--	--
0.22±0.008	0.217	0.222	0.260	0.265	0.270	0.038	0.286	498.4	3800	15	24	--	--	--
0.23±0.008	0.227	0.232	0.272	0.277	0.282	0.040	0.298	454.5	3800	15	24	--	--	--
0.24±0.008	0.237	0.242	0.282	0.287	0.292	0.040	0.308	416.2	3800	15	24	--	--	--
0.25±0.008	0.247	0.252	0.292	0.297	0.302	0.040	0.318	382.5	3800	15	25	66	--	--
0.26±0.010	0.257	0.262	0.302	0.307	0.312	0.040	0.330	358.4	3800	15	25	66	551	479
0.27±0.010	0.267	0.272	0.312	0.317	0.322	0.040	0.340	331.4	3800	15	26	61	551	479
0.28±0.010	0.277	0.282	0.322	0.327	0.332	0.040	0.350	307.3	3800	15	26	61	561	479
0.29±0.010	0.287	0.292	0.332	0.337	0.342	0.040	0.360	285.7	3800	20	26	61	561	490
0.30±0.010	0.297	0.302	0.344	0.349	0.354	0.042	0.374	262.9	4200	20	26	61	592	510
0.32±0.010	0.316	0.322	0.364	0.369	0.374	0.042	0.394	230.0	4200	20	26	55	602	510
0.35±0.010	0.346	0.352	0.394	0.399	0.404	0.042	0.424	191.2	4200	20	27	50	612	520
0.37±0.010	0.366	0.372	0.416	0.421	0.426	0.044	0.446	170.6	4200	20	27	50	643	551
0.40±0.010	0.396	0.402	0.448	0.454	0.460	0.046	0.480	145.3	4200	20	27	76	683	581
0.45±0.010	0.445	0.452	0.500	0.506	0.512	0.048	0.532	114.2	4200	20	28	72	724	622
0.50±0.010	0.495	0.502	0.552	0.558	0.564	0.050	0.586	91.43	4500	20	28	67	765	653
0.55±0.020	0.545	0.552	0.602	0.608	0.614	0.050	0.646	78.15	4500	20	29	62	775	663
0.60±0.020	0.595	0.602	0.654	0.661	0.668	0.052	0.698	65.26	4500	20	29	62	816	694
0.65±0.020	0.645	0.653	0.707	0.715	0.723	0.054	0.752	55.31	4500	20	29	58	857	734
0.70±0.020	0.695	0.703	0.759	0.767	0.775	0.056	0.804	47.47	4500	20	30	53	898	765
0.75±0.020	0.745	0.753	0.813	0.822	0.831	0.060	0.860	41.19	5100	20	30	53	979	826
0.80±0.020	0.794	0.803	0.865	0.874	0.883	0.062	0.914	36.08	5100	25	30	66	1010	867
0.85±0.020	0.844	0.853	0.917	0.926	0.935	0.064	0.966	31.87	5100	25	30	66	1020	898
0.90±0.020	0.894	0.903	0.969	0.978	0.987	0.066	1.020	28.35	5100	25	31	62	1120	928
0.95±0.020	0.944	0.953	1.021	1.031	1.041	0.068	1.072	25.38	5100	25	31	62	1120	969
1.00±0.030	0.994	1.003	1.075	1.085	1.095	0.072	1.138	23.33	5100	25	32	58	1220	1020
1.10±0.030	1.093	1.103	1.179	1.190	1.201	0.074	1.242	19.17	5900	25	32	54	1220	1020
1.20±0.030	1.193	1.203	1.279	1.290	1.301	0.074	1.342	16.04	5900	25	32	54	1330	1120
1.30±0.030	1.293	1.305	1.383	1.395	1.407	0.078	1.448	13.61	5900	25	33	50	1330	1120
1.40±0.030	1.393	1.405	1.483	1.495	1.507	0.078	1.548	11.70	5900	25	33	46	1330	1120
1.50±0.030	1.493	1.505	1.587	1.599	1.611	0.082	1.654	10.16	5900	25	33	46	1430	1220
1.60±0.030	1.592	1.605	1.687	1.699	1.711	0.082	1.754	8.906	5900	25	33	42	1430	1220
1.70±0.030	1.692	1.703	1.789	1.801	1.813	0.084	1.856	7.871	6300	25	33	--	1530	1330
1.80±0.030	1.792	1.803	1.889	1.901	1.913	0.084	1.956	7.007	6300	25	34	--	1530	1330
1.90±0.030	1.892	1.903	1.993	2.005	2.017	0.088	2.062	6.278	6300	25	34	--	1630	1330
2.00±0.030	1.992	2.003	2.093	2.105	2.117	0.088	2.162	5.656	6300	30	34	--	1630	1330
2.10±0.030	2.090	2.104	2.195	2.208	2.221	0.090	2.266	5.123	6300	30	34	--	1630	1430
2.20±0.030	2.19	2.204	2.297	2.310	2.323	0.092	2.368	4.662	6300	30	35	--	1730	1430
2.30±0.030	2.29	2.304	2.397	2.410	2.423	0.092	2.468	4.260	6300	30	35	--	1730	1430
2.40±0.030	2.390	2.404	2.501	2.515	2.529	0.096	2.574	3.908	6300	30	35	--	1840	1530
2.50±0.030	2.490	2.504	2.603	2.617	2.631	0.098	2.678	3.598	6300	30	35	--	1840	1530
2.60±0.030	2.590	2.604	2.703	2.717	2.731	0.098	2.778	3.324	6300	30	35	--	1840	1530
2.70±0.030	2.690	2.704	2.803	2.817	2.831	0.098	2.878	3.079	6300	30	35	--	--	--
2.80±0.030	2.790	2.804	2.903	2.917	2.931	0.098	2.978	2.861	6300	30	36	--	--	--
2.90±0.030	2.890	2.904	3.003	3.017	3.031	0.098	3.078	2.665	6300	30	36	--	--	--
3.00±0.030	2.99	3.004	3.103	3.117	3.131	0.098	3.178	2.489	6300	30	36	--	--	--
3.20±0.030	3.19	3.204	3.303	3.319	3.335	0.098	3.388	2.198	6300	30	36	--	--	--

Product Tags:

Twisted Litz Wire

Litz Wire 0.079x20

Polyurethane Enamelled Copper Cable
