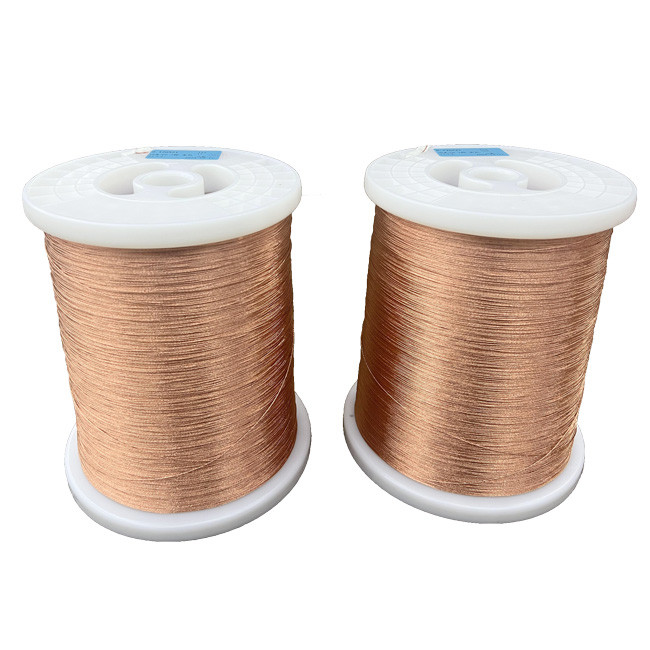

PEWH U0 polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor

U0 is an enameled wire without winding layer, which is suitable for applications that do not require complex winding due to its simpler structure and lower cost.

Excellent electrical properties: PEWH's modified polyester insulation is available in thicknesses of up to 0.1-0.5mm, providing reliable insulation protection in high voltage environments.

Good chemical resistance: PEWH polyimide outer layers are highly resistant to a wide range of chemicals and solvents, making them suitable for industrial applications in harsh environments.

Customization: A full range of customization services are available, including different diameters, lengths and insulation thickness options to meet the needs of specific industries and applications.

Overall, PEWH is a high-end enameled wire product with excellent performance in terms of high temperature resistance, mechanical strength, insulation and chemical resistance. It is widely used in the manufacture of key components for high power motors, large transformers and other industrial applications.

PEWH U0 polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor

JIS---0種													Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)	Min Elongation(%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min.Increase in Diameter (mm)	Max. Finished overall Diameter (mm)	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.06±0.003	0.059	0.061	0.093	0.098	0.103	0.030	0.110	6966	2500	10	15	--	--	--
0.07±0.003	0.069	0.071	0.103	0.108	0.113	0.030	0.120	4990	2500	10	17	--	--	--
0.08±0.003	0.079	0.081	0.115	0.120	0.125	0.032	0.133	3778	3000	10	17	--	--	--
0.09±0.003	0.089	0.091	0.125	0.130	0.135	0.032	0.143	2959	3000	10	18	--	--	--
0.10±0.008	0.098	0.101	0.134	0.139	0.144	0.032	0.156	2647	3500	15	19	--	--	--
0.11±0.008	0.108	0.111	0.144	0.149	0.154	0.032	0.166	2153	3500	15	19	--	--	--
0.12±0.008	0.118	0.121	0.156	0.161	0.166	0.034	0.180	1786	3750	15	20	--	--	--
0.13±0.008	0.128	0.131	0.162	0.171	0.176	0.034	0.190	1505	3750	15	20	--	--	--
0.14±0.008	0.138	0.141	0.176	0.181	0.186	0.034	0.200	1286	3750	15	21	--	--	--
0.15±0.008	0.148	0.151	0.186	0.191	0.196	0.034	0.210	1111	3750	15	21	--	--	--
0.16±0.008	0.158	0.161	0.198	0.203	0.208	0.036	0.222	969.5	3750	15	22	--	--	--
0.17±0.008	0.168	0.171	0.208	0.213	0.218	0.036	0.232	853.5	3750	15	23	--	--	--
0.18±0.008	0.178	0.181	0.220	0.225	0.230	0.038	0.246	757.2	3800	15	23	--	--	--
0.19±0.008	0.188	0.191	0.230	0.235	0.240	0.038	0.256	676.2	3800	15	23	--	--	--
0.20±0.008	0.198	0.201	0.240	0.245	0.250	0.038	0.266	607.6	3800	15	24	--	--	--
0.21±0.008	0.207	0.212	0.250	0.255	0.260	0.038	0.276	549.0	3800	15	24	--	--	--
0.22±0.008	0.217	0.222	0.260	0.265	0.270	0.038	0.286	498.4	3800	15	24	--	--	--
0.23±0.008	0.227	0.232	0.272	0.277	0.282	0.040	0.298	454.5	3800	15	24	--	--	--
0.24±0.008	0.237	0.242	0.282	0.287	0.292	0.040	0.308	416.2	3800	15	24	--	--	--
0.25±0.008	0.247	0.252	0.292	0.297	0.302	0.040	0.318	382.5	3800	15	25	66	--	--
0.26±0.010	0.257	0.262	0.302	0.307	0.312	0.040	0.330	358.4	3800	15	25	66	551	479
0.27±0.010	0.267	0.272	0.312	0.317	0.322	0.040	0.340	331.4	3800	15	26	61	551	479
0.28±0.010	0.277	0.282	0.322	0.327	0.332	0.040	0.350	307.3	3800	15	26	61	561	479
0.29±0.010	0.287	0.292	0.332	0.337	0.342	0.040	0.360	285.7	3800	20	26	61	561	490
0.30±0.010	0.297	0.302	0.344	0.349	0.354	0.042	0.374	262.9	4200	20	26	61	592	510
0.32±0.010	0.316	0.322	0.364	0.369	0.374	0.042	0.394	230.0	4200	20	26	55	602	510
0.35±0.010	0.346	0.352	0.394	0.399	0.404	0.042	0.424	191.2	4200	20	27	50	612	520
0.37±0.010	0.366	0.372	0.416	0.421	0.426	0.044	0.446	170.6	4200	20	27	50	643	551
0.40±0.010	0.396	0.402	0.448	0.454	0.460	0.046	0.480	145.3	4200	20	27	76	683	581
0.45±0.010	0.445	0.452	0.500	0.506	0.512	0.048	0.532	114.2	4200	20	28	72	724	622
0.50±0.010	0.495	0.502	0.552	0.558	0.564	0.050	0.586	91.43	4500	20	28	67	765	653
0.55±0.020	0.545	0.552	0.602	0.608	0.614	0.050	0.646	78.15	4500	20	29	62	775	663
0.60±0.020	0.595	0.602	0.654	0.661	0.668	0.052	0.698	65.26	4500	20	29	62	816	694
0.65±0.020	0.645	0.653	0.707	0.715	0.723	0.054	0.752	55.31	4500	20	29	58	857	734
0.70±0.020	0.695	0.703	0.759	0.767	0.775	0.056	0.804	47.47	4500	20	30	53	898	765
0.75±0.020	0.745	0.753	0.813	0.822	0.831	0.060	0.860	41.19	5100	20	30	53	979	826
0.80±0.020	0.794	0.803	0.865	0.874	0.883	0.062	0.914	36.08	5100	25	30	66	1010	867
0.85±0.020	0.844	0.853	0.917	0.926	0.935	0.064	0.966	31.87	5100	25	30	66	1020	898
0.90±0.020	0.894	0.903	0.969	0.978	0.987	0.066	1.020	28.35	5100	25	31	62	1120	928
0.95±0.020	0.944	0.953	1.021	1.031	1.041	0.068	1.072	25.38	5100	25	31	62	1120	969
1.00±0.030	0.994	1.003	1.075	1.085	1.095	0.072	1.138	23.33	5100	25	32	58	1220	1020
1.10±0.030	1.093	1.103	1.179	1.190	1.201	0.074	1.242	19.17	5900	25	32	54	1220	1020
1.20±0.030	1.193	1.203	1.279	1.290	1.301	0.074	1.342	16.04	5900	25	32	54	1330	1120
1.30±0.030	1.293	1.305	1.383	1.395	1.407	0.078	1.448	13.61	5900	25	33	50	1330	1120
1.40±0.030	1.393	1.405	1.483	1.495	1.507	0.078	1.548	11.70	5900	25	33	46	1330	1120
1.50±0.030	1.493	1.505	1.587	1.599	1.611	0.082	1.654	10.16	5900	25	33	46	1430	1220
1.60±0.030	1.592	1.605	1.687	1.699	1.711	0.082	1.754	8.906	5900	25	33	42	1430	1220
1.70±0.030	1.692	1.703	1.789	1.801	1.813	0.084	1.856	7.871	6300	25	33	--	1530	1330
1.80±0.030	1.792	1.803	1.889	1.901	1.913	0.084	1.956	7.007	6300	25	34	--	1530	1330
1.90±0.030	1.892	1.903	1.993	2.005	2.017	0.088	2.062	6.278	6300	25	34	--	1630	1330
2.00±0.030	1.992	2.003	2.093	2.105	2.117	0.088	2.162	5.656	6300	30	34	--	1630	1330
2.10±0.030	2.090	2.104	2.195	2.208	2.221	0.090	2.266	5.123	6300	30	34	--	1630	1430
2.20±0.030	2.19	2.204	2.297	2.310	2.323	0.092	2.368	4.662	6300	30	35	--	1730	1430
2.30±0.030	2.29	2.304	2.397	2.410	2.423	0.092	2.468	4.260	6300	30	35	--	1730	1430
2.40±0.030	2.390	2.404	2.501	2.515	2.529	0.096	2.574	3.908	6300	30	35	--	1840	1530
2.50±0.030	2.490	2.504	2.603	2.617	2.631	0.098	2.678	3.598	6300	30	35	--	1840	1530
2.60±0.030	2.590	2.604	2.703	2.717	2.731	0.098	2.778	3.324	6300	30	35	--	1840	1530
2.70±0.030	2.690	2.704	2.803	2.817	2.831	0.098	2.878	3.079	6300	30	35	--	--	--
2.80±0.030	2.790	2.804	2.903	2.917	2.931	0.098	2.978	2.861	6300	30	36	--	--	--
2.90±0.030	2.890	2.904	3.003	3.017	3.031	0.098	3.078	2.665	6300	30	36	--	--	--
3.00±0.030	2.99	3.004	3.103	3.117	3.131	0.098	3.178	2.489	6300	30	36	--	--	--
3.20±0.030	3.19	3.204	3.303	3.319	3.335	0.098	3.388	2.198	6300	30	36	--	--	--
